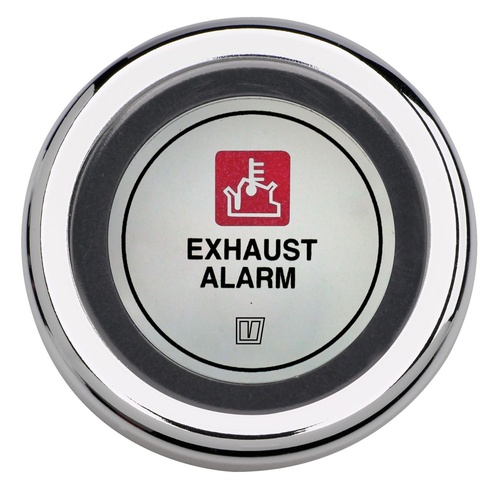

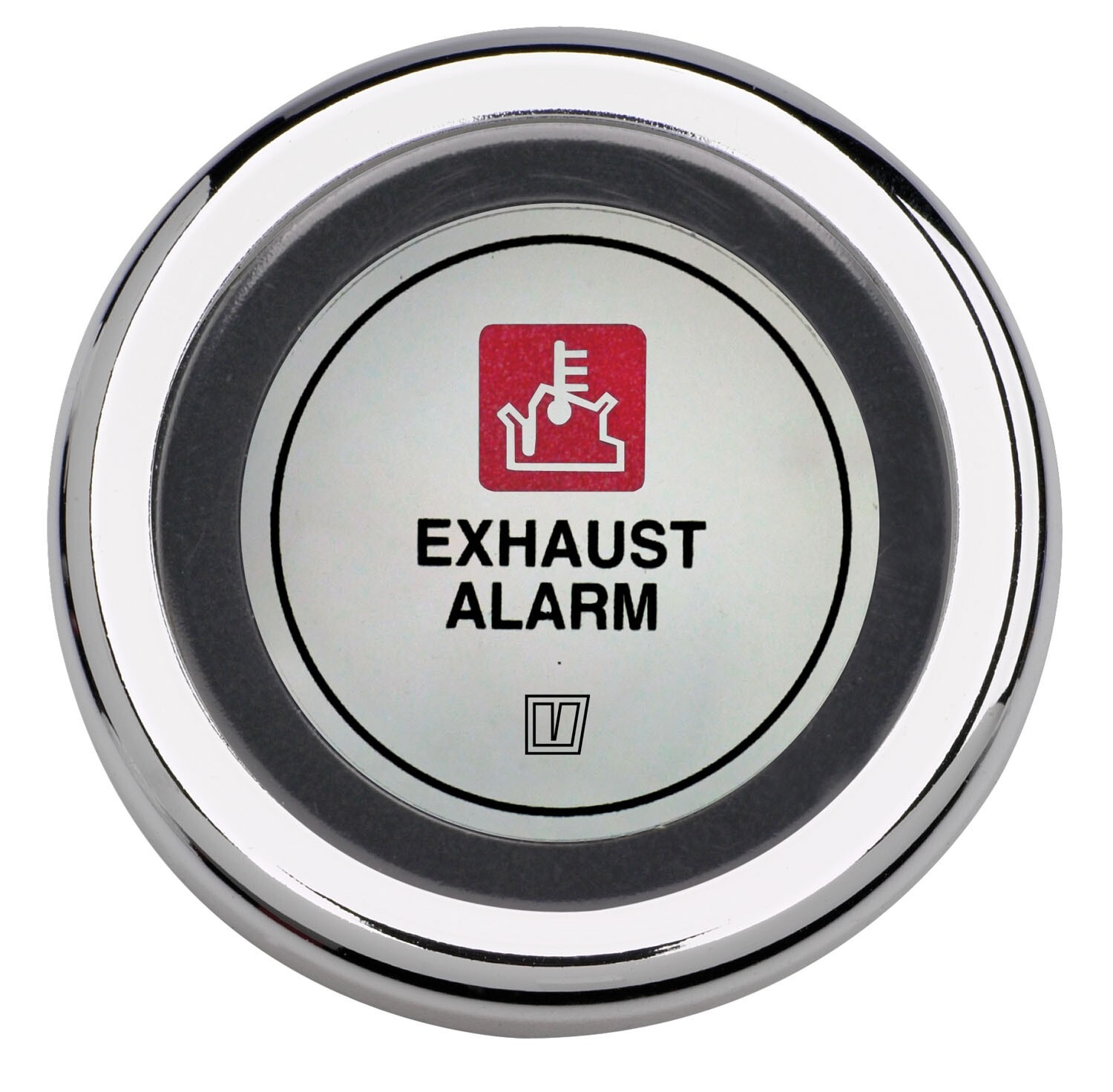

Designed for water injected exhaust systems. Provides an alarm when the temperature inside the exhaust hose or the muffler exceeds an acceptable level. A blockage in the engine water intake or a damaged pump impeller will result in a complete loss or severe reduction in the volume of cooling water in the exhaust system. In this case the temperature in the exhaust will rise much faster than thetemperature of the engine. VETUS always recommends placing an exhaust temperature alarm that provides a visual and audible alarm when the temperature inside the exhaust hose or the muffler exceeds an acceptable level.

Specifications

Alarm cut-out dimension Ø 52 mm overall diameter 62 mm

Build-in depth 40 mm

Suitable for 12 Volt D.C.

Use sensor XHSM in VETUS waterlocks that have a pre-installed connection

Use sensor type XHSH for fitting in the exhaust hose
