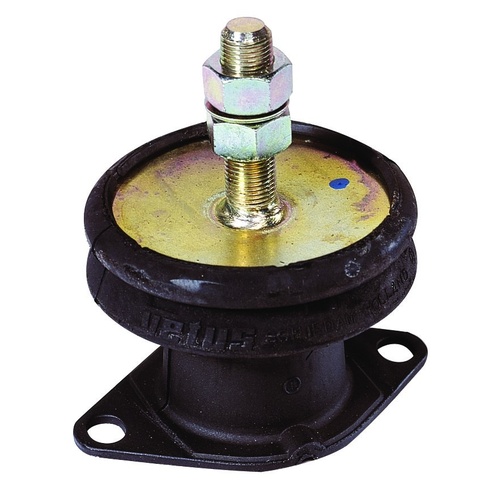

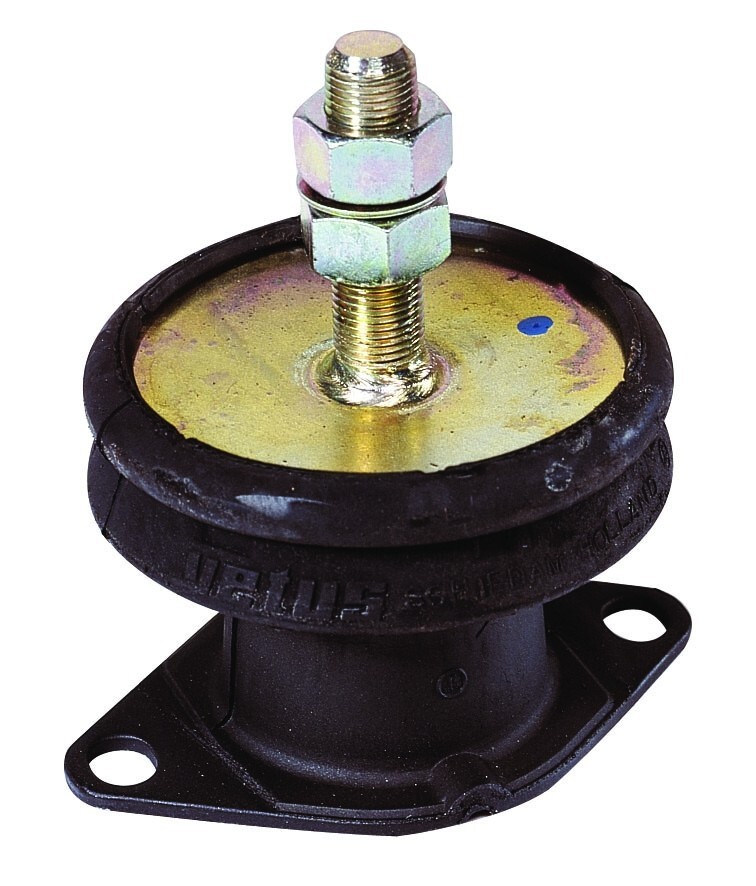

This hydro-damper is a combination of a conventional rubber-metal damper and a hydraulic shock absorber. It has a maximum load of 67 kg. This hydro-damper is a combination of a conventional rubber-metal damper and a hydraulic shock absorber. Especially for engines with 1 2 or 3 cylinders producing many horizontal and vertical movements the VETUS hydro-damper is an absolutesensation: the reduction of vibration and noise is truly staggering. The maximum static load per support is 60 kg and the maximum thrust per support is 50 kg. In other words: dependent on gearbox ratio number of revolutions propeller diameter etc.these mountings are suitable for engines of up to 18 - 26 kW (25 - 35 HP).
Hydraulic engine mounting

(MITSTEUN)

SKU MITSTEUN
