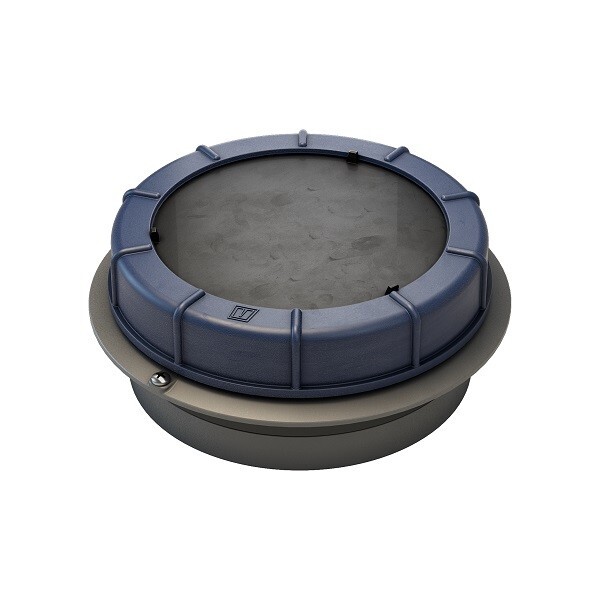

Universal inspection port for tanks. Innovation with robust design. This large inspection port for (bio)diesel fuel fresh water and waste water tanks has a flange-in-ring design which makes installing the port very easy in tanks constructed from most common materials.

With a Ø120 mm diameter the port meets the ISO21487 regulations for fuel tanks.

The counter flange and rubber seal are inserted in a Ø159 mm hole in the tank and then tightened by 4 bolts.

When compressed the rubber seal expands sideways to lock the inspection port into the tank. Cleaning and inspecting the tank has never been this easy.

Specifications
  • Dimension Ø120 mm / 159 mm hole
  • Suitable for G.R.P. stainless steel and plastic tanks with different wall thicknesses

  • Order separatly: VSAW159 Ø159 mm hole saw for plastic G.R.P. or stainless steel tanks

Universal inspection port for fuel and water tanks, Ø 120 mm.  THIS PART REPLACES ILB120

(ILT120B)

SKU ILT120B
