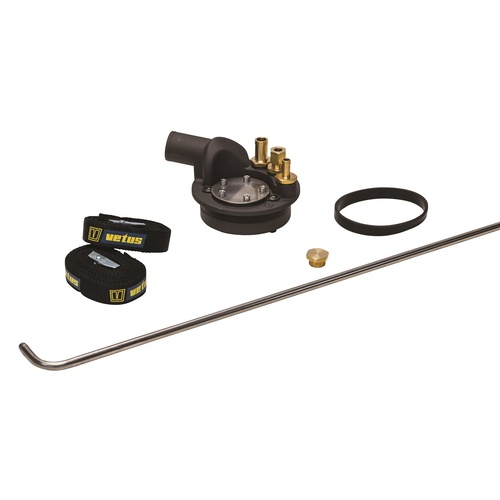

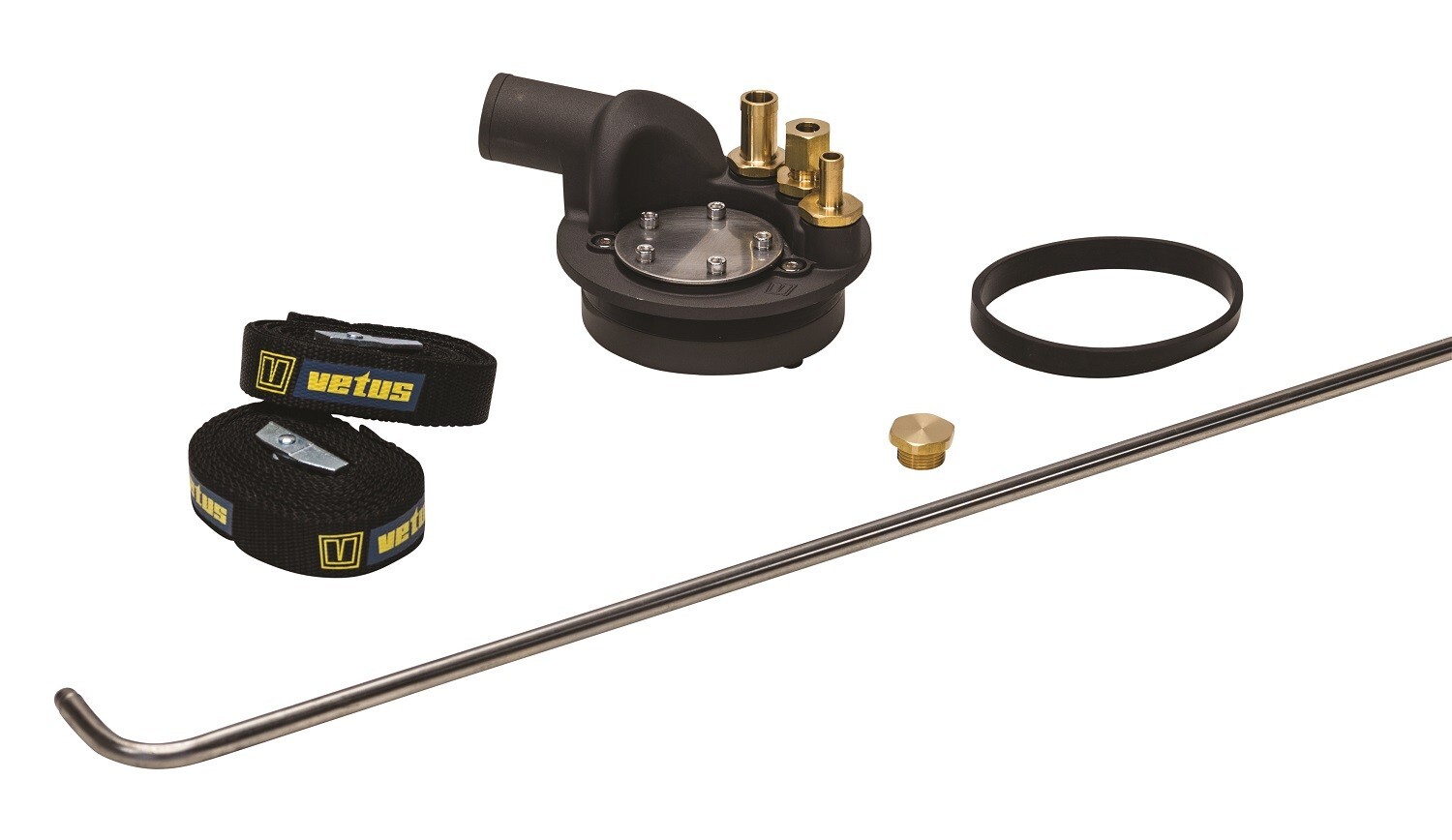

The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel. This connection kit has an anodized salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just3 bolts compressing the rubber seal to ensure a perfect seal. The set contains all the required connections only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank. This connection kit is suitable for plastic metal or GRP diesel or petrol fuel tanks.

The following connections are supplied
  • Hose connection for filling Ø 38 or 51 mm and a 16 mm tank ventilation connection
  • Fuel suction pipe according to model selected
  • Ø8 mm max. tank depth 440 mm
  • Ø10 mm max. tank depth 850 mm
  • Ø15mm max. tank depth 970 mm
  • Fuel return for Ø8 10 15 mm hose
  • Mounting flange for tank level sensors (connection is suitable for sensors with a 5-hole SAE flange)
  • Terminal tag 63 mm for ground wire
  • 2 Mounting straps to secure tank
  • Fuel connection kit, filler 38 mm, supply/return Ø 10 mm, vent 16 mm

    (FTL3810B)

    SKU FTL3810B
