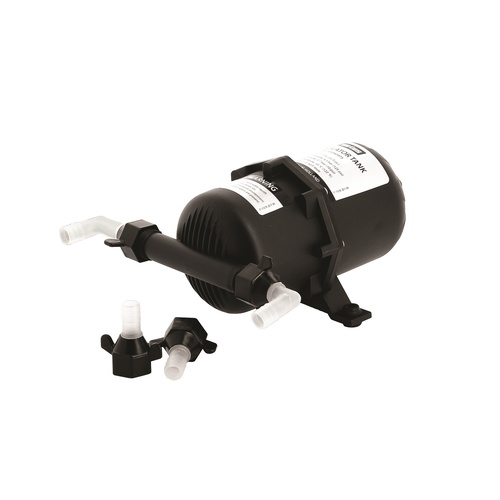

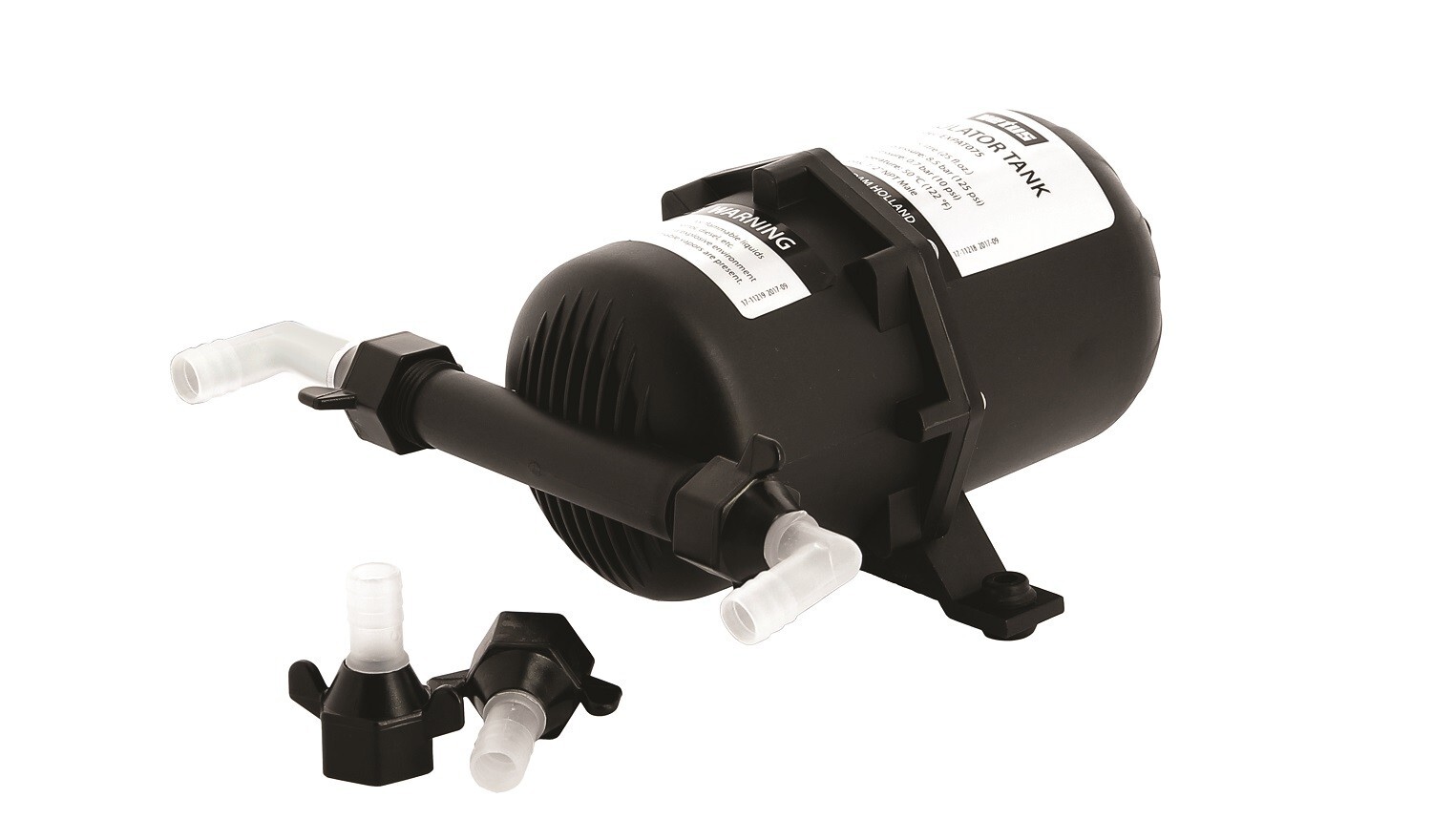

Steady water pressure inside your vessel. Made from high grade polyamide this compact small capacity accumulator with rubber membrane provides a constant flow in the vessels water circuit. The pressure in the accumulator prevents the water pump motor being started each time a supply of water is required and the butyl rubber membrane is suitable for drinking water. Connecting is easy as there is no preferred IN or OUT connection on this accumulator.

The EXPAT075 ensures a constant water flow saves energy and minimizes noise. The accumulator is set to a pre-charge pressure of 07 bar but can be adjusted to optimal settings for your fresh water system (to a maximum of 85 bar).Overall dimensions are 223 mm x 194 mm x 114 mm and the accumulator is supplied with two angled and two straight 13 mm hose pillars.

Highlights
  • Smooths water flow
  • Elongates the lifespan of your fresh water pump
  • Tank is suitable for confined spaces
  • Dampens pulsation in the system
  • Dimensions 223 mm x 194 mm x 114 mm (l x w x h)
  • Volume: 075 litre
  • Maximum pressure: 85 bar
  • Pre-charge pressure: 07 bar
  • Temperature range: 0 to 50 degrees Celsius
  • Connections: ½” NPT Male
  • Hose pillars: 13 mm hose
  • Weight: 036 kg
  • Accumulator tank for fresh water, 0.75 litre capacity

    (EXPAT075)

    SKU EXPAT075
