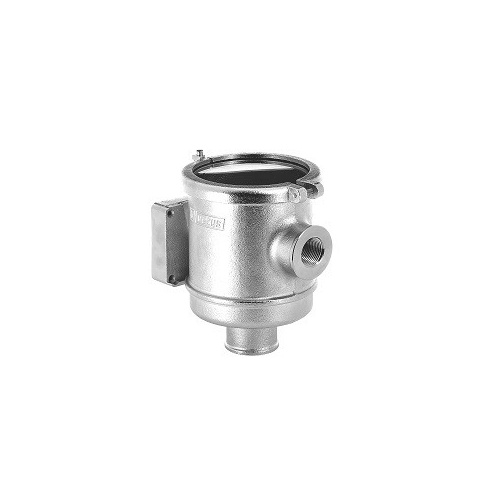

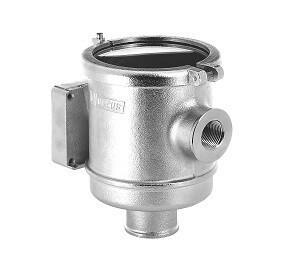

Metal filter type CWS for installations where the cooling water strainer must be mounted close to or below the waterline and for commercial applications. VETUS nickel plated bronze cooling water strainers are an ideal solutions.The cover is removable with one screw. Tested up to 7 bar over pressure.This filter is available in 3 different sizes ranging from G1 G1 ¼ and G1 ½.Matching V-Quipment hose connections are available separately see table below foritem numbers. Dimensions of the CWS filter can be found in the picture below.The CWS-series will be available for sale first quarter of 2018.

Specifications
  • Housing of nickel plated bronze
  • Cover of polycarbonate
  • Filter element of stainless steel (AISI 316)
  • Mounted bracket of nickel plated bronze
  • Can be mounted near or below the waterline
  • V-Quipment hose connections available separately
  • Cooling water strainer, type CWS, bronze, G1 1/2 connections

    (CWS112)

    SKU CWS112
