**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

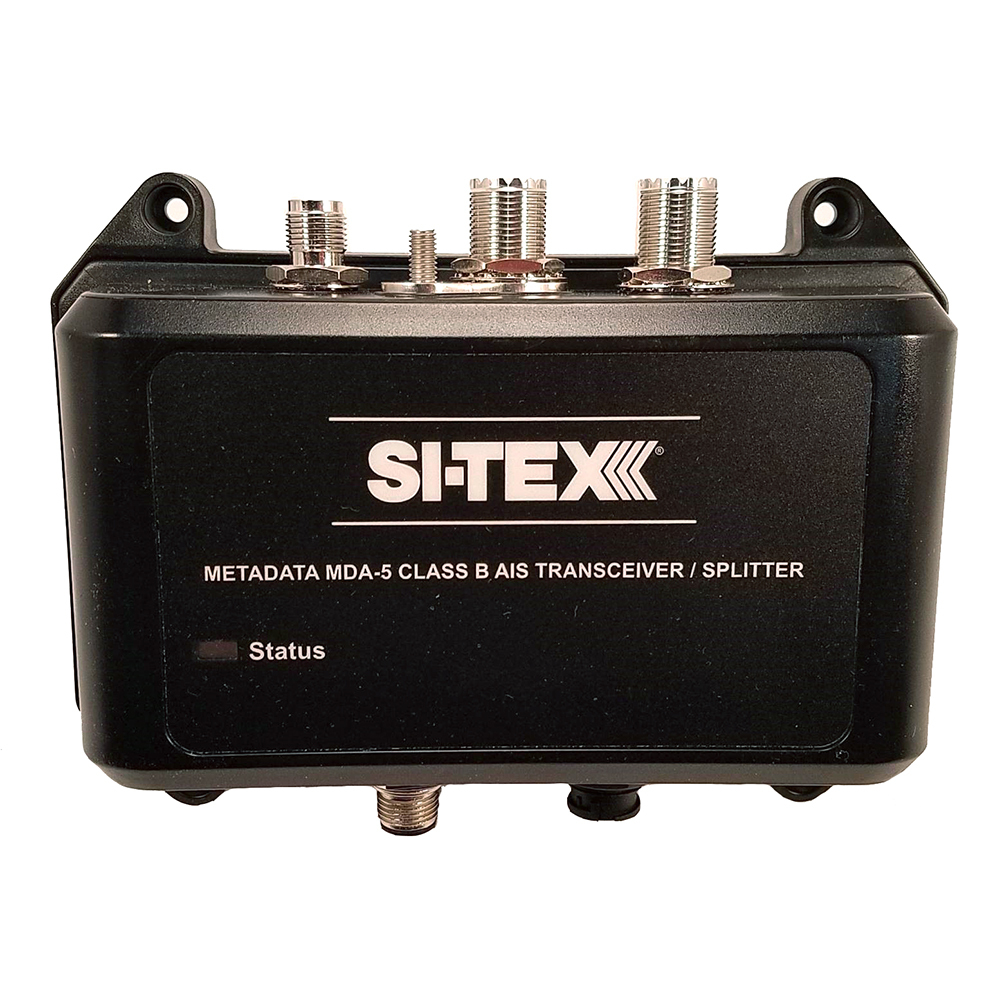

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Features:

  • The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
  • 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
  • SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
  • Intergrated zero loss VHF antenna splitter - no second antenna needed
  • Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
  • NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
  • Built-In GPS & GLONASS satellite navigation receiver
  • Water Proof certified to IPX7
  • Dual Receivers decodes all DSC & AIS messages, including MOB & SART
  • Ultra-power efficient
  • IEC-62287-2, FCC and USCG certified
  • 2 Year Warranty

Package Includes:

  • Commercial Grade External GPS Antenna with Coax Cable
  • Mounting hardware
  • Power & Data Interface cable
  • VHF Radio Connection cable
  • Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
  • User Manual & Quick Start Guide

Specifications:

  • Transmitter Output Power: 5 Watts
  • VHF Antenna Connector SO-239 UHF
  • GPS Antenna Connector TNC
  • Frequency Range: 156.025-162.025 Mhz
  • Input Voltage: 9.6-31.2 VDC
  • Current Draw: 220mA average power consumption
  • Operating Temperature Range: -25C to +55xC
  • Ingress Protection: IP67
  • Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
  • Weight 0.8 lbs.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


American Sourced Marine Parts:


The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.


All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.


Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


Dangerous Goods:


Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


Grey Marketing & Compliance:


Where a brand has an established distributor in
Australia, we will decline to sell it.
Most such brands and products have been removed
from our American listings.
Some items shown within this category are intended only
for the American marketplace and
may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




Express Freight Charges:  Total freight cost is based on the weigh of the package.


The default freight charge is $85 for the first kilo.


The shipping weight kg of the item is shown
under the Specifications tab above.


We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





0-1kg $85 (This is the default rate)


>1-2kg  +$40


>2-3kg  +$65


>3-4kg  +$80


10kg    +$185


15kg    +$240


20kg    +$295


Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




(74076)

SKU 74076
Shipping Weight 1.9100kg
