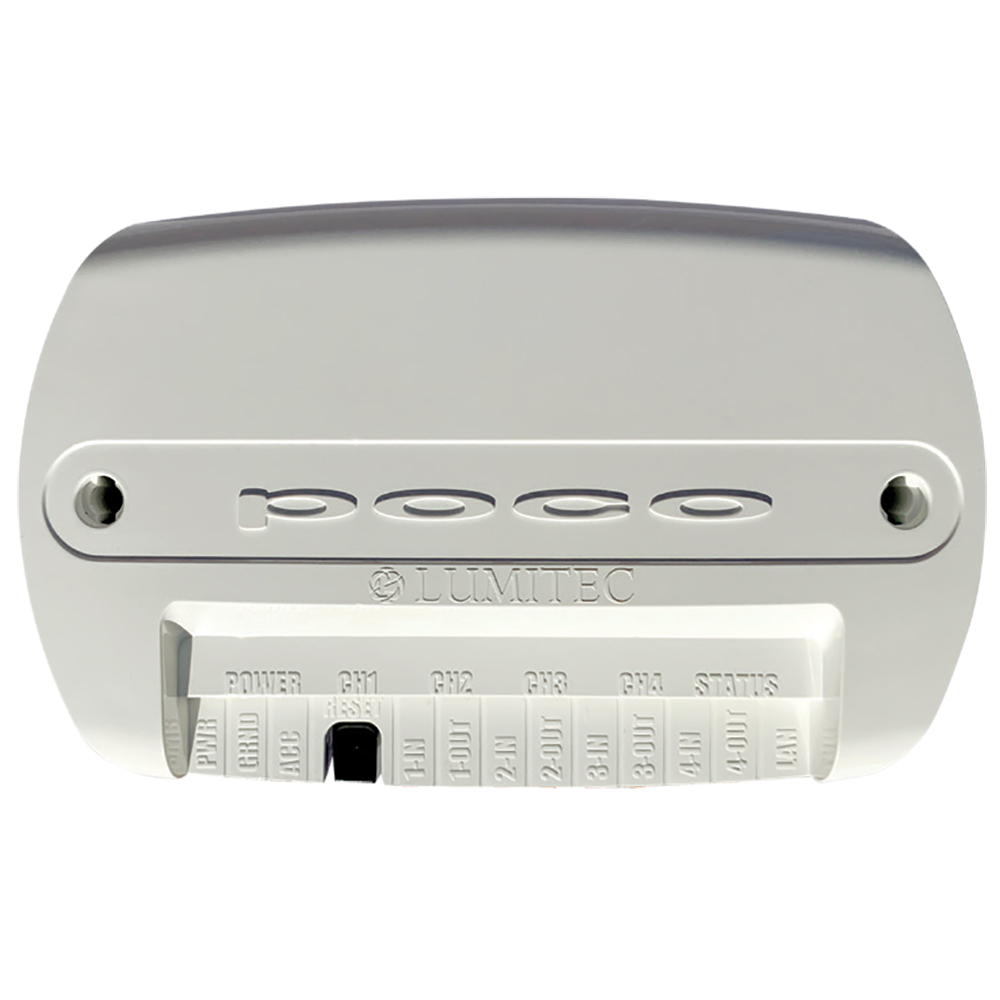

Poco Digital Lighting Control 3.0

Poco Digital Lighting Control is a low-cost, easy-to-install, and set up onboard digital lighting control system that offers full dimming and color control over all your Lumitec PLI-enabled lights at the touch of a button via any compatible MFD or connected smart device. Poco 3.0 adds enhanced wireless security, an external API for compatibility with networked third-party automation systems, and a "Triggers" feature which allows for the triggering of Poco virtual switches by external inputs - all packaged within a responsive user interface for better mobile device usability.

Features:

  • PWR: Positive 10-30 VDC POCO supply power. Line must be fused prior to connecting to POCO with 3 Amp ATC blade fuse or equivalent (Constant ON or Switched with ACC Line)
  • GRND: Negative 10-30 VDC POCO supply power
  • ACC: Positive 10-30 VDC, Low current enable line to turn POCO on from remote device (i.e. MFD) (Must be powered to enable Poco)
  • 1-4 IN: Channel Input power. Line must be fused prior to connecting to POCO with 10 Amp ATC blade fuse or equivalent (14 AWG 300V 16 inch long cable)
  • 1-4 OUT: Channel Output power to the lighting circuit. Maximum 10 Amp load per channel. The maximum total load across all channels is limited to 40 Amps. Load on the channel must be only one of the following (Lumitec PLI enabled lighting/lighting capable of dimming (through PWM) / device requiring a standard ON-OFF circuit) (14 AWG 300V 16 inch long cable)
  • LAN: Local Area Network connection. 10/100 Base T data connection to POCO. Standard CAT-5 cable with RJ45 connector required to plug into sealed network cable adapter. (18 inch long cable with Link light)
  • POWER: Indicator - Illuminates Green if POCO is powered on, both PWR and ACC lines must have supply voltage between 10 and 30 VDC
  • CH1-4: Indicator - Illuminates Red if power is supplied to Channel from fuse/breaker panel: - Illuminates Green if power is supplied to Channel input and the channel is turned on inside of POCO controller; PLI enabled lights may be OFF: - Flashes Orange if PLI data is transmitted: - Illuminates Orange if the channel is dimmed through a PWM signal.
  • STATUS: Green blinking light indicates WiFi connection status: - 0 blinks: WiFi disabled - 1 blink: WiFi-enabled but not connected to any peers - 2 blinks: WiFi is connected to one or more peers Blue blinking light indicates Bluetooth-LE connection status: - 0 blinks: Bluetooth-LE is disabled - 1 blink: Bluetooth-LE enabled but not connected - 2 blinks: Bluetooth-LE is connected

American Sourced Marine Parts:  Please read this.....

The product on this page ships worldwide from the United States by Fedex or DHL. Prices are AUD$.


Express Delivery Service >30 kilos:

Included: Premium DHL or Fedex 4-7 day service. Transit Insurance up to AUD$1000 value. Customs clearance.
GST is already pre-paid. Tracking of your parcel. Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000

Freight Charges:

The shipping weight kg of the item is shown under the Specifications tab.

The Express shopping cart default rate is AUD$85 for the first kilo. Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.

The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400 Estimate only.

Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(89026)

SKU 89026
Shipping Weight 0.4400kg
