201-007G2S Lopolight Tri-Color Navigation Light w/Anchor Light & Strobe - 2nm - 0.7M Cable - Silver Housing 89074
Tri-Color Navigation Light with Anchor Light & Strobe - 2nm - 0.7M Cable - Silver Housing
2 nautical miles 201-007G2S (12 – 20m / 39.4’ – 65.6’)

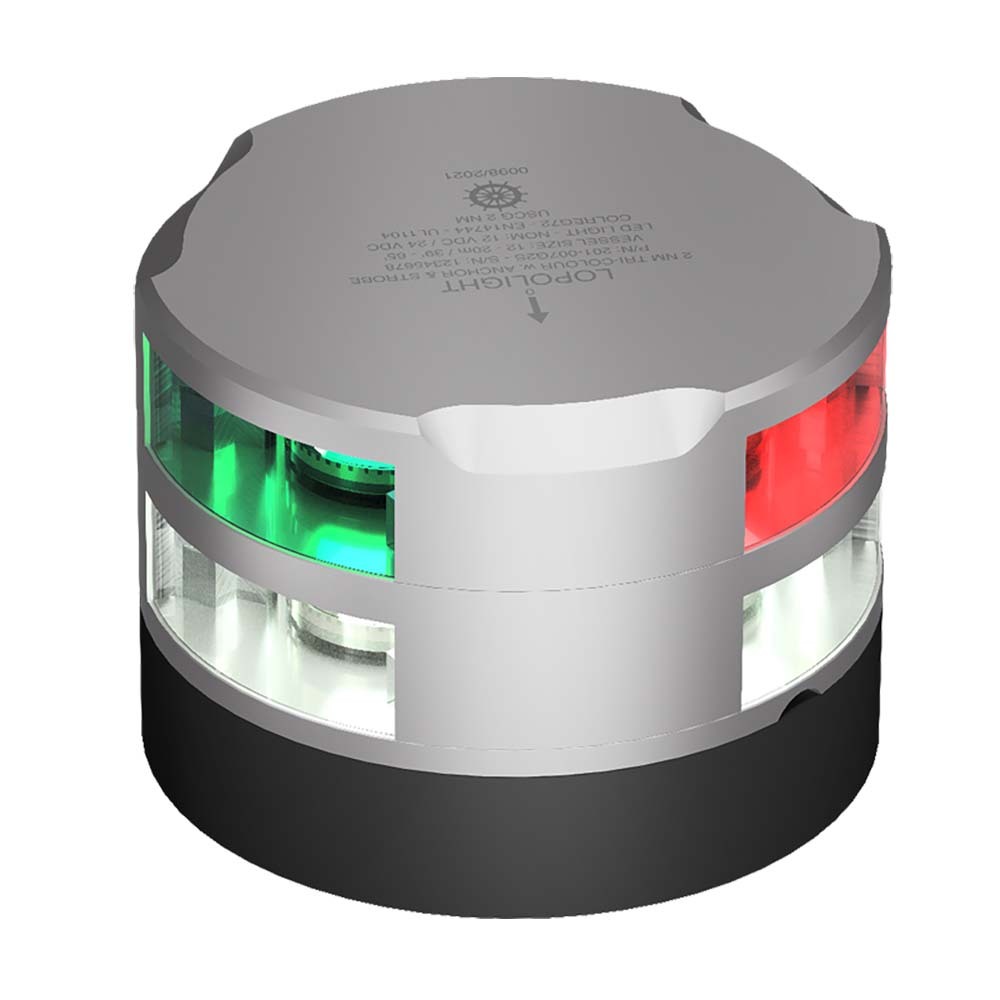

The LED navigation light consists of two individual lights; A tri-color with three high-power LEDs that produces light at the specified angle utilizing specially designed PMMA light guides, and an Anchor light with a single array of LEDs that produces light at the specified angle.
Each light can be activated separately. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.
The interior is completely filled with a special potting resin making it water- and vibration-proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.
Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.
This navigation light is in compliance with the following standards:
- COLREG72
- EN14744
- IEC 60945
- USCG (UL1104)
Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3, and LY4 compliant system.
Features:
- Vessel size: 12m – 50m (39.4’ - 164’)
- Visibility: >2 nautical miles
- Intensity: >5,4cd
- Power consumption:
- Tri-color: 6,5 Watt; Current: 0,54A @12 VDC - 0,26A @24 VDC
- Anchor: 2,6 Watt; Current: 0,22A @12 VDC - 0,11A @24 VDC
American Sourced Marine Parts: Please read this.....
The product on this page ships worldwide from the United States by Fedex or DHL. Prices are AUD$.
Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service. Transit Insurance up to AUD$1000 value. Customs clearance.
GST is already pre-paid. Tracking of your parcel. Choose Express Freight at checkout.
Not Included: Government tax of AUD$88 for orders over AUD$1000Freight Charges:
The shipping weight kg of the item is shown under the Specifications tab.
The Express shopping cart default rate is AUD$85 for the first kilo. Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.The total AUD$ freight rates are:
0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400 Estimate only.Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.
The Fine Print:
We sell this part by the manufacturer's part number only. These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible. The sale is final.
Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies. The
warranty is in the box. If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.
Grey Marketing & Compliance:
Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.
(89074)
SKU | 89074 |
Shipping Weight | 0.9500kg |
