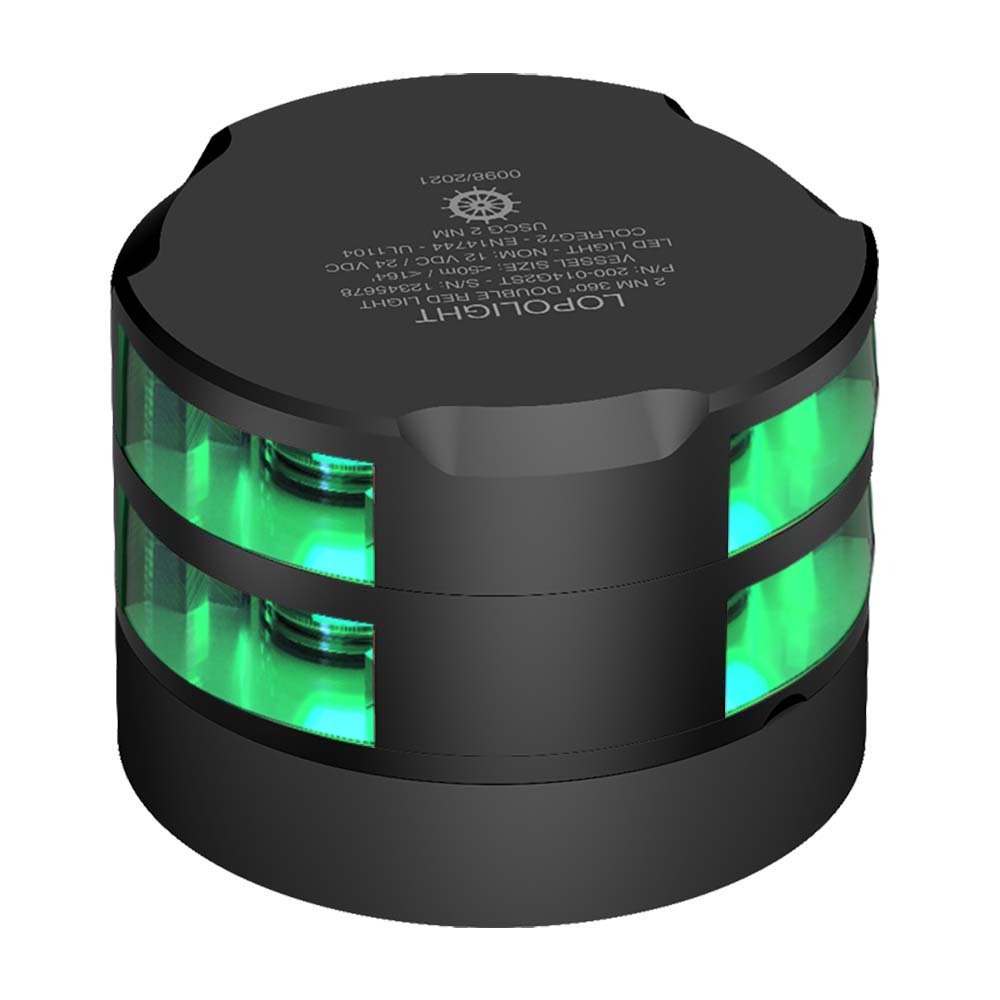

360° Double Stacked Green Navigation Light - 2nm - 0.7M Cable - Black Housing

The double LED light consists of two (2) individual lights, each with a single row of LEDs that produces light at the specified angle, which can be activated separately. One is dedicated as the primary, the other as the secondary.

The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.

This navigation light is in compliance with the following standards:

  • COLREG72
  • EN14744
  • IEC 60945
  • USCG (UL1104)

Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3, and LY4 compliant system.

Specifications:

  • Vessel size: <50m (<164’)
  • Visibility: >2 nautical miles
  • Intensity: >5,4 cd
  • Power consumption; 4,4 Watt; Current @ 12 VDC: 0,37A - Current @ 24 VDC: 0,18A
  • Operating voltage: 10 - 32 V DC
  • Number of LEDs: 28/28
  • Light color: Green
  • Operating temperature: -25°C to +55°C
  • IP Rating: IP68
  • Mounting: Horizontal

Included in the Package:

  • 1 pc. Navigation light
  • Pre-cabled with 0.7M marine-grade cable on HDPE base
  • Installation instructions
