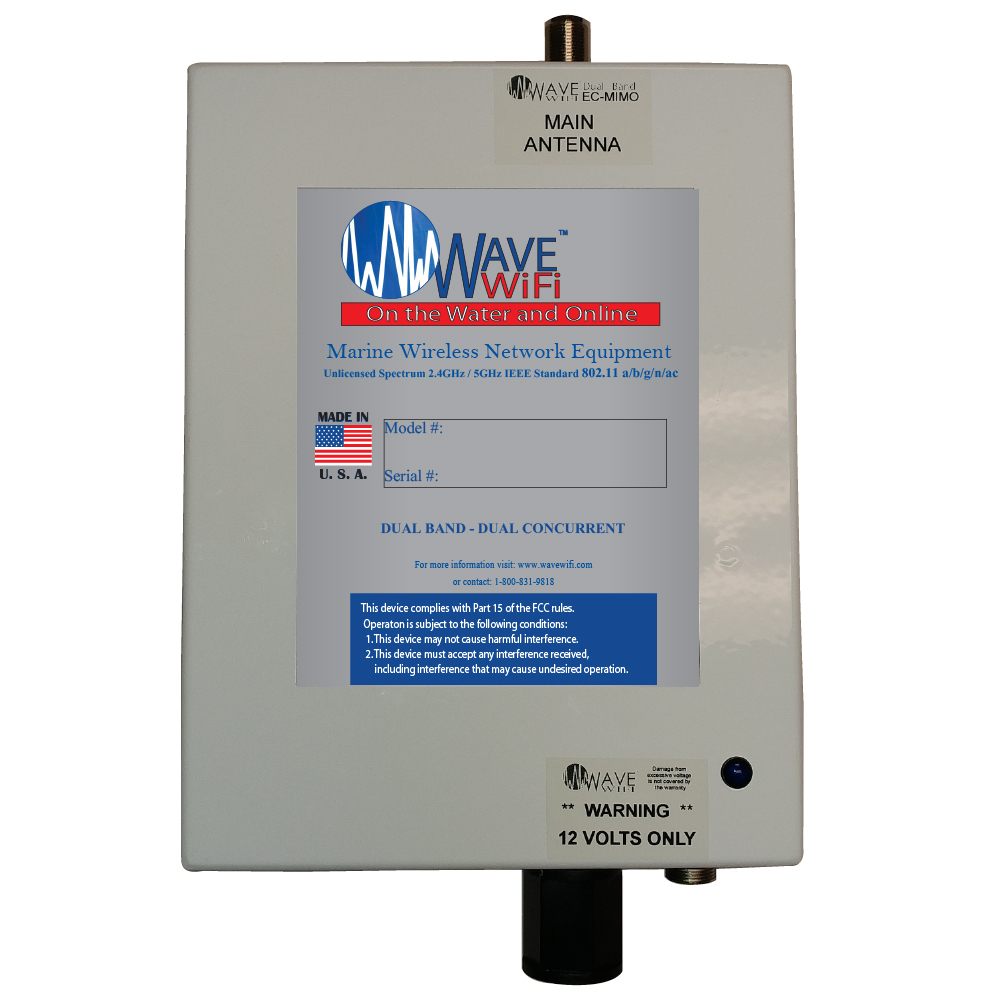

EC ER Dual-Band

Wave WiFi’s EC ER DB is our solution to Dual Band needs on medium sized vessels (50-65'). It supports WEP, WPA, and WPA2 encryptions and has a 600Mhz processor. The EC ER DB is an ethernet converter (EC unit). So direct connection can be made to any WAN ethernet enabled device, router or switch resulting in flawless performance as a standalone system or integrated into the vessel’s network.

The EC ER DB comes with 25' of low loss cable that is then connected to a powerful Dual Band Omni-Directional antenna giving the system an incredible amount of range. The system is a more affordable midrange solution when comparing our most powerful EC HP DB and shorter range Rogue systems.

Like all Wave WiFi devices the EC ER DB has a Web-based friendly user interface. There is no software installation.

Wave WiFi products offer outstanding performance because of the proprietary firmware technology embedded in each unit. The Webbased firmware permits the user to scan for access points (Hotspots) and provides a detailed diagnostic of the quality of each hotspot. The GUI (pronounced “gooey”) or Graphical User Interface allows the user to see the signal strength and quality in real time of any connected hotspot.

Features:

  • The 600Mhz processor Delivers Faster Response times form the User Interface
  • Capable of up to 125Mbit aggregate throughput
  • Supports Concurrent 2.4Ghz / 5Ghz Wi-Fi Frequencies
  • User Friendly proprietary Web-based Wave WiFi Interface
  • DC Power, 12 volts (Cable Included)
  • Weather Resistant enclosure
  • Powerful Dual Band Omni-Directional Antenna
  • Longer Range than Rogue devices
  • 2 year limited warranty

Specifications:

  • CPU: 600Mhz
  • Ethernet: One 10/100 Mbit/s Fast Ethernet port
  • Wireless: 802.11 b/g/n 2.4Ghz and 802.11 a/n 5Ghz Radio
  • Power: DC 12V Power cable
  • Operating Temp: -22F to +140F / -33C to +60C
  • Connector: N - FEMALE

Kit Contains:

  • Quick Start guide
  • 25' of CAT5e Ethernet cabling
  • 10' DC 12V power cable
  • 25' of low-loss antenna cabling with a spare Male “N” connector
  • Dual Band Omni-Directional N-Female antenna
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


American Sourced Marine Parts:


The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.


All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.


Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


Dangerous Goods:


Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


Grey Marketing & Compliance:


Where a brand has an established distributor in
Australia, we will decline to sell it.
Most such brands and products have been removed
from our American listings.
Some items shown within this category are intended only
for the American marketplace and
may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




Express Freight Charges:  Total freight cost is based on the weigh of the package.


The default freight charge is $85 for the first kilo.


The shipping weight kg of the item is shown
under the Specifications tab above.


We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





0-1kg $85 (This is the default rate)


>1-2kg  +$40


>2-3kg  +$65


>3-4kg  +$80


10kg    +$185


15kg    +$240


20kg    +$295


Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




(67786)

SKU 67786
Shipping Weight 5.2900kg
