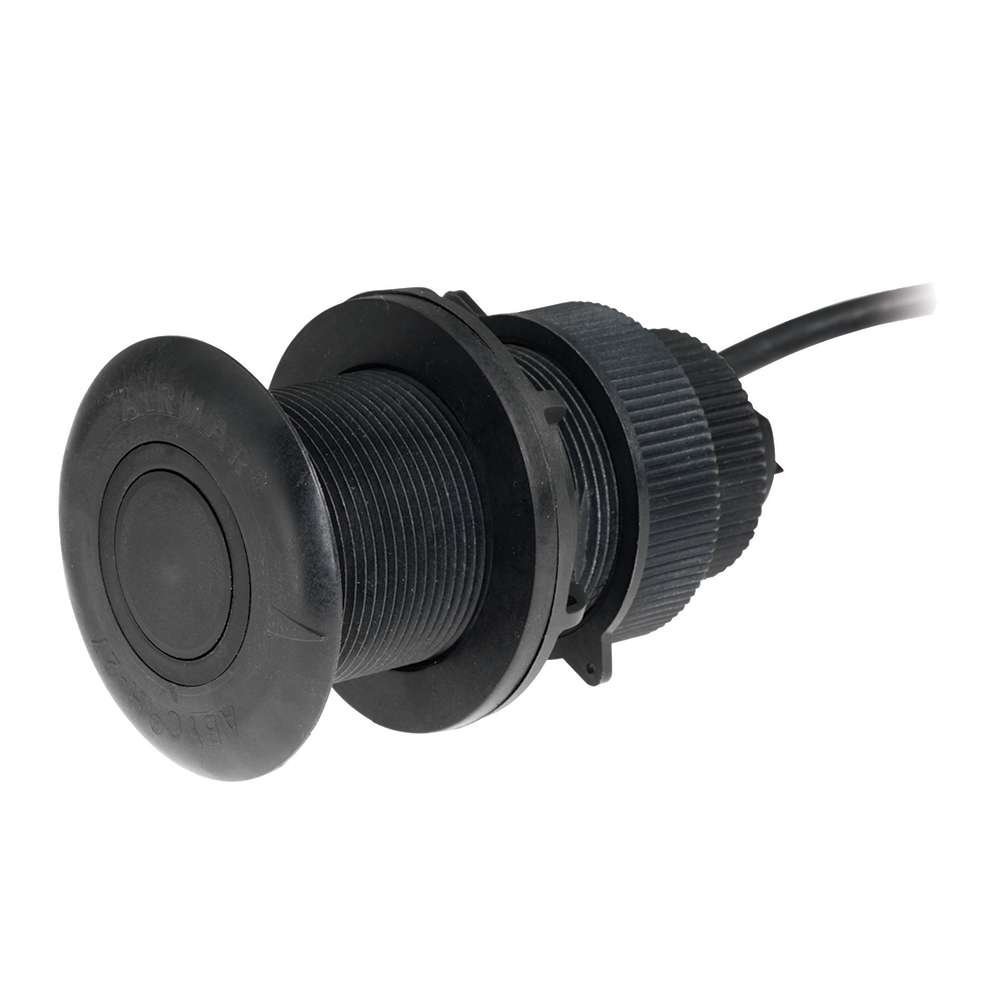

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°

  • Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
  • Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
  • Connector: 5-Pin NMEA 2000

Features:

  • Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
  • Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
  • Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
  • Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
  • Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
  • Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
  • 235 kHz frequency prevents mutual interference with other echo sounders on vessel
  • Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

  • Mount: Thru-hull
  • Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
  • Housing Material: Plastic
  • Connector: 5-pin NMEA 2000®
  • Cable Length: 20 ft.
  • Frequency: 235 kHz
  • Cone: 12°
  • Power: 100 Watts RMS
  • Depth Sensor Range: 1.6 - 594 ft.
  • Acoustic Window Material: Urethane
  • Compatible Hull Materials: Fiberglass or metal
  • Hole Diameter for Installation: 2"
  • Dimensions: 4.92" H x 2.94" OD
