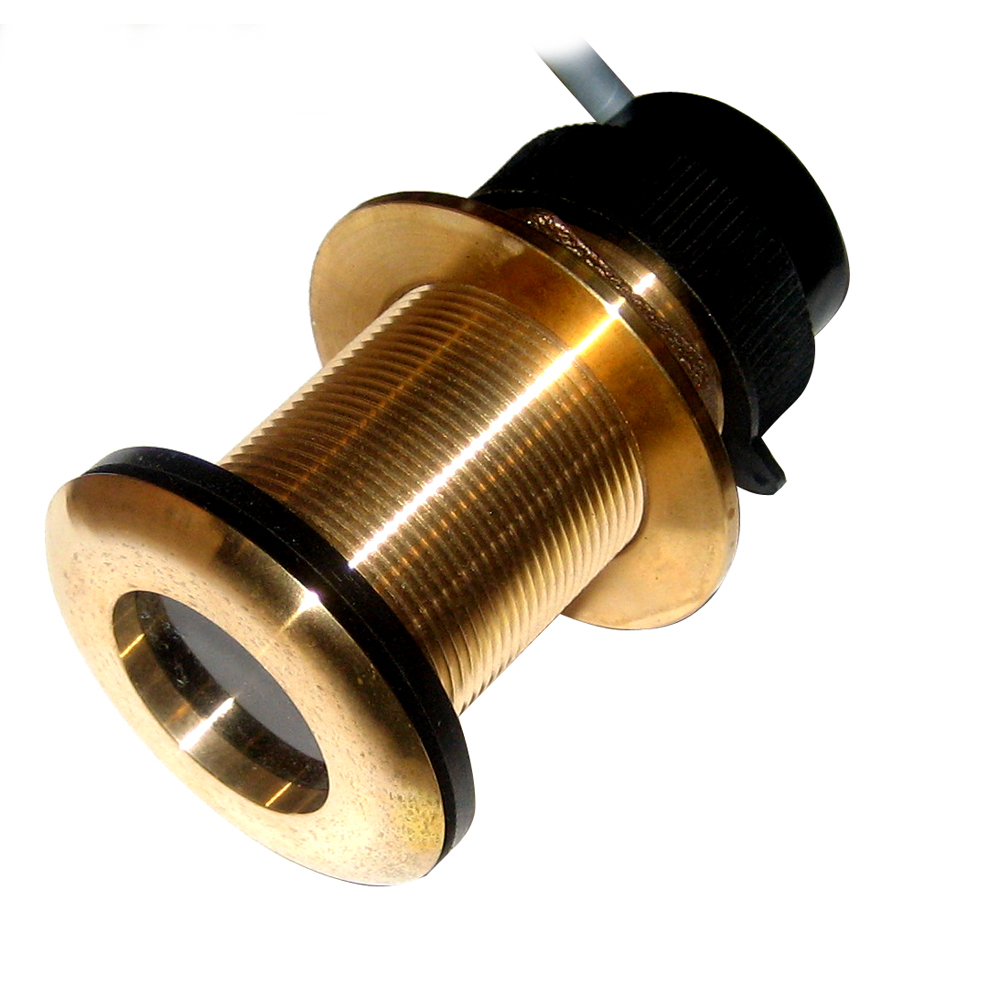

Airmar DT820BV-235-N2 235 kHz Low Profile Tilted Element™ Smart™ Sensor 20° Tilt Bronze NMEA 2000

Airmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183M (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6').

Airmar's Smart™ Sensors have embedded microelectronics - the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.

Smart™ Sensor Features
  • Enhanced depth performance
  • Maximum Depth Range: 180M (594')
  • Minimum range 0.5M (1.6')
  • Urethane face provides better sensitivity
  • Excellent high-speed performance
  • Fixed 20° tilt for 16° to 24° deadrise
  • Fixed 12° tilt for 8° to 15° deadrise
  • Fixed 0° tilt for 0° to 8° deadrise
  • NMEA 2000 output
  • 100 W RMS power
  • Frequency: 235 kHz
  • Cone: 12°
  • All models have depth and temperature
  • 235 kHz eliminates interference with fishfinders
  • Retractable insert provides ease of serviceability
  • Usable Shaft Length: 57mm (2.25")
  • .6M(19.8') NMEA 2000® devicenet cable and connector
  • 51mm (2") housing
  • Blanking plug included
  • Accommodates maximum hull thicknesses 54mm (2-1/8")
  • Accommodates minimum hull thicknesses 6.3mm (0.25")


American Sourced Marine Parts:


The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.


All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.


Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


Dangerous Goods:


Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


Grey Marketing & Compliance:


Where a brand has an established distributor in
Australia, we will decline to sell it.
Most such brands and products have been removed
from our American listings.
Some items shown within this category are intended only
for the American marketplace and
may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




Express Freight Charges:  Total freight cost is based on the weigh of the package.


The default freight charge is $85 for the first kilo.


The shipping weight kg of the item is shown
under the Specifications tab above.


We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





0-1kg $85 (This is the default rate)


>1-2kg  +$40


>2-3kg  +$65


>3-4kg  +$80


10kg    +$185


15kg    +$240


20kg    +$295


Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




(59743)

SKU 59743
Shipping Weight 2.0700kg
