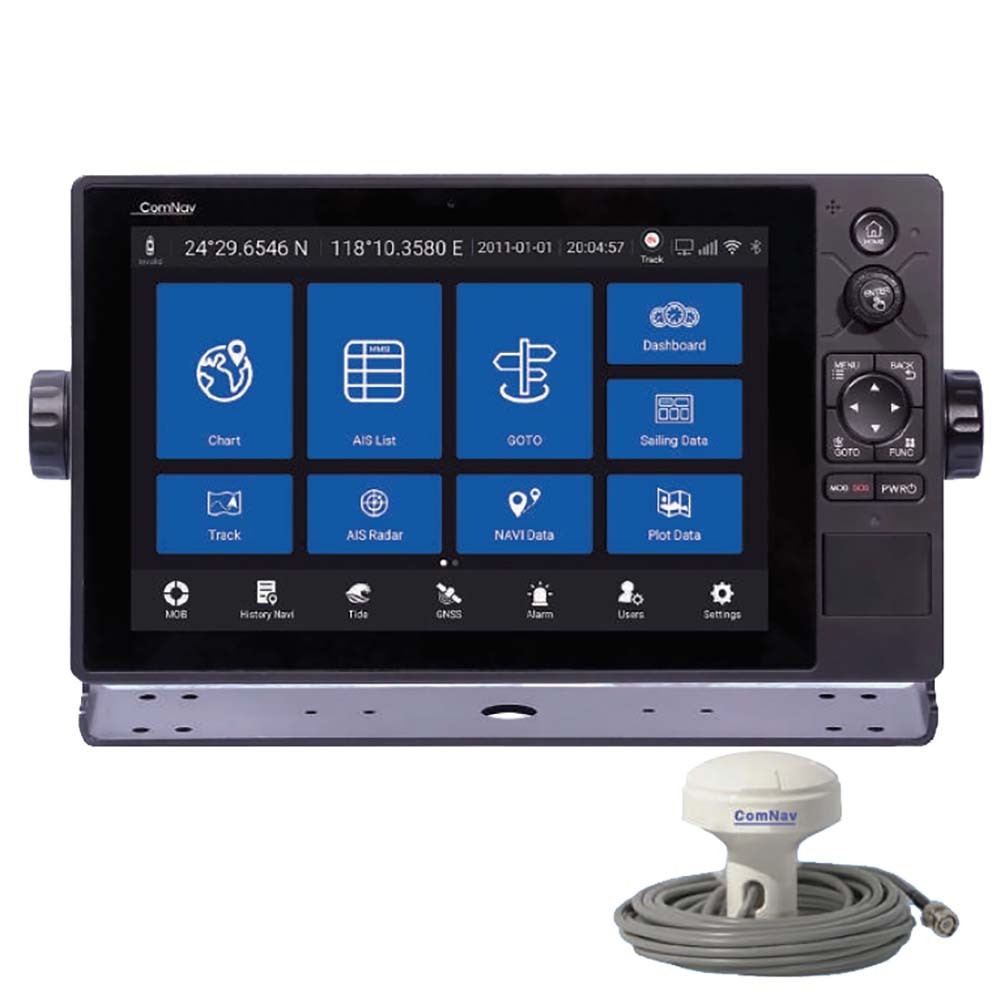

M10 DGPS Chartplotter with Integrated Class B AIS Transceiver

The Comnav M10 DGPS uses the ephemeris combined with a histogram to show the GNSS satellite situation and signal strength. It supports GPS and BDS positioning systems running together to improve accuracy.

The new digital repeater dial provides an easy-to-read and visualizable image for HDT, COG, SOG, BRG, RNG, Longitude, Latitude, XTE, ETA, DPT, TEMP, Wind, and Date.

Chartplotter Specifications:

  • Operation System - Android 5.1 with OpenGL ES .0 & OpenCL 1.1
  • CPU - Cortex-A17 Quad Core
  • CPU Speed - 1.8GHz  Bit
  • RAM - 2GB DDR3 1333MHz
  • Flash Memory - 16GB
  • Video Engine - Mali-T764
  • Keyboard - 1 Knob Encoder and 9 Function Keys
  • Touch Panel - Capacitive Multi-Touch Screen
  • Size - 10.1"
  • Brightness - 800 cd/m2 (Max)
  • Viewing Angle - Capacitive Multi-Touch Screen
  • Resolution - 1280x800
  • Power Voltage - DC 10v-36v
  • Power Consumption - 14W or less (24 VDC)
  • Audio - 1W
  • Micro SD Card Slot - Supports Two 128G High Speed Micro-SD Cards

AIS Transceiver Specifications:

  • Frequency - 156.025 - 162.025MHz
  • Bandwidth - 25KHz
  • Modulation - GMSK/FM
  • Data Rate - 9600bps
  • Number of AIS Transmitters - 1
  • Number of AIS Receivers - 2 Channels: Channel A CH87B (161.975MHz), Channel B CH88B (162.025MHz)
  • Transmitting Power - 2W
  • Rx Sensitivity - <-107 dBm @ 20% PER


American Sourced Marine Parts:  Please read this.....


The product on this page ships worldwide from the United States by Fedex or DHL.  Prices are AUD$.

Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service.  Transit Insurance up to AUD$1000 value.  Customs clearance.
GST is already pre-paid. Tracking of your parcel.  Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000
Freight Charges:


The shipping weight kg of the item is shown
under the Specifications tab.


The Express shopping cart default rate is AUD$85 for the first kilo.    Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.


The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400   Estimate only.


Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(92080)

SKU 92080
