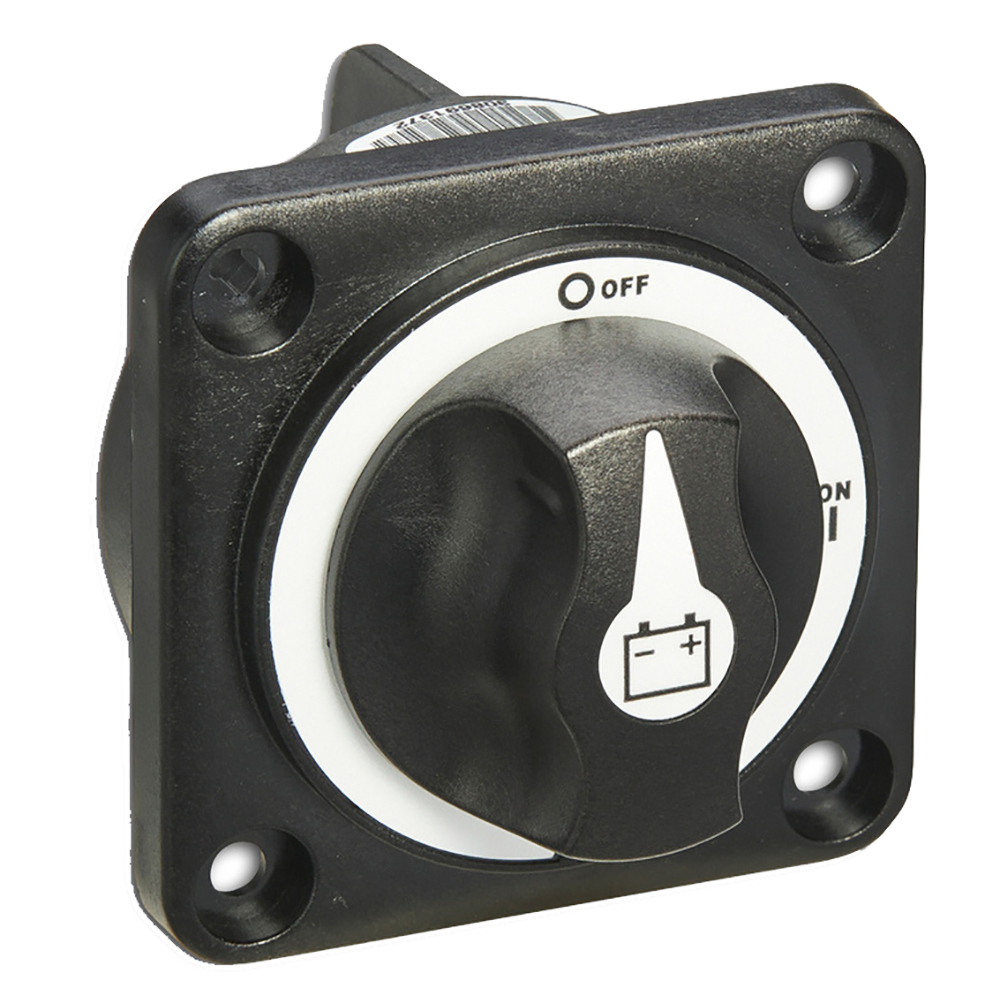

SR- Series Flange Mount - 300A Battery Switch

Stainless steel hardware and tin-plated copper studs. Can be installed in locations with limited space behind the panel.

Features:

  • Isolates the batteries and eliminates battery drain when the vehicle is stored overnight or for longer periods. Electrically cuts off battery power for safety or when the vehicle is being serviced.
  • Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads.
  • Available with integral holes to accept lockout/tagout. No need to purchase additional hardware.
  • Plastic construction will not corrode and stands up to road splash and salt spray. Ingress protected to IP67/ IP69K. The switch can be mounted anywhere on the vehicle.
  • Units have a depth of only 3” (knob front to the end of studs) – can be installed in locations where behind-panel space is limited.
  • Stainless steel hardware and tin-plated copper contacts minimize resistance in harsh environments.

Specifications:

  • Current Rating (Continuous) in Amps: 300
  • Voltage Rating (Max): 32
  • Circuitry: SPST
  • Ingress Protection: IP67, IP69K
  • Actuator: Plastic Knob
  • Contact Material: Copper
  • Housing: Engineering Thermoplastic
  • Agency Approval - Humidity: 0 - 95% RH
  • Agency Approval - Shock: 50 G
  • Agency Approval - Vibration: 10 G


American Sourced Marine Parts:  Please read this.....


The product on this page ships worldwide from the United States by Fedex or DHL.  Prices are AUD$.

Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service.  Transit Insurance up to AUD$1000 value.  Customs clearance.
GST is already pre-paid. Tracking of your parcel.  Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000
Freight Charges:


The shipping weight kg of the item is shown
under the Specifications tab.


The Express shopping cart default rate is AUD$85 for the first kilo.    Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.


The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400   Estimate only.


Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(88876)

SKU 88876
Shipping Weight 0.3300kg
