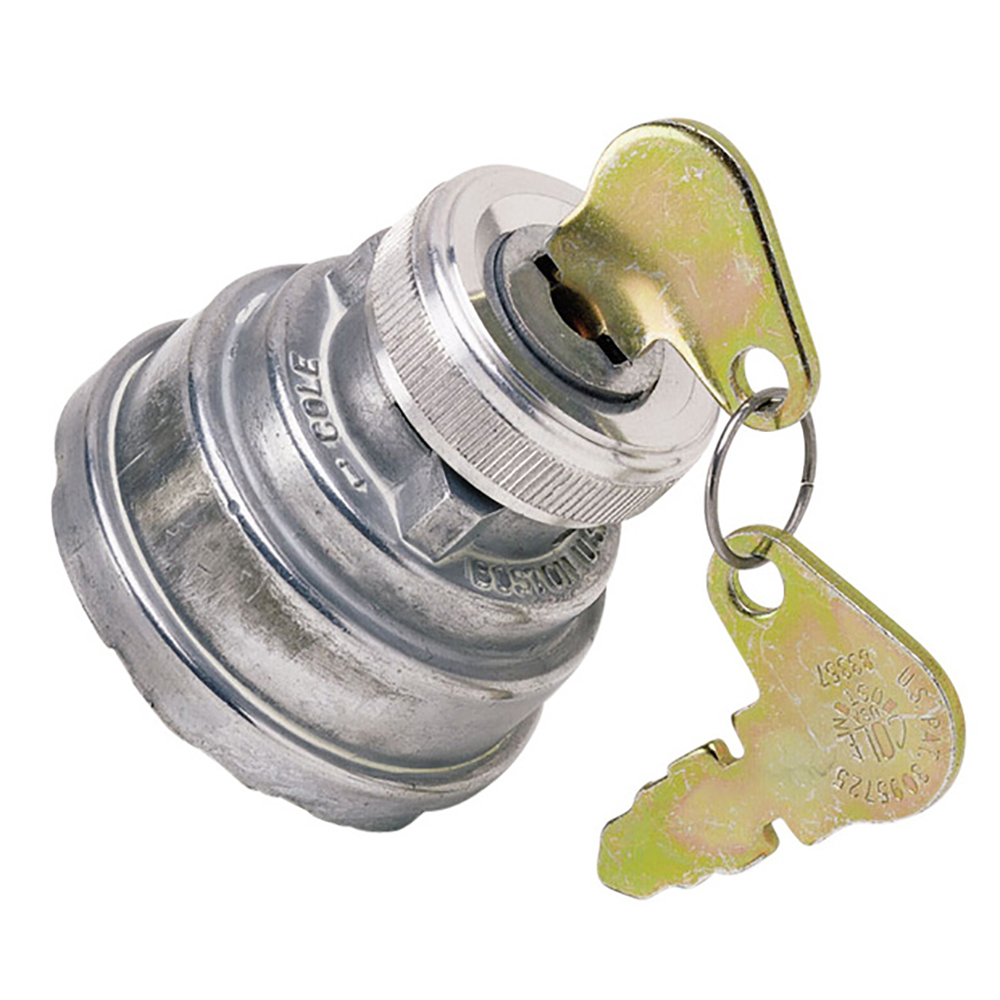

3-Position Heavy-Duty Ignition Switch

Ignition Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle.

The 956 Heavy Duty Series is our most robust series of Ignition Switches, providing reliable circuit control for vehicle ignition.

Features:

  • Key removable in “Off” Position Only (where actuator applicable)
  • Ignition Proof to SAE J259
  • 5 screw terminals
  • Coded lock and keys
  • Gasket-sealed, Shutter lock seal, O-ring seal in the stem
  • Ground terminal
  • 1"-24 bushing
  • Off-Ign/Acc-Ign/Start. Spring return to Ign/Acc. Key removable at Off
  • Ratings at 12V DC: 10A Accessory, 10A Ignition, 5A Start, 1A Ground

Specifications:

  • Current Rating (Continuous) in Amps: 10
  • Positions: 3
  • Actuator: Hencol Key
  • Input Terminals: 4 Screw
  • Housing: Plated Steel
  • Contact Material: Bronze
  • Recommended Torque: Off - Ign/Acc - Start with Spring Return to Ign and Start Lockout
