Bennett announces their new 12 volt BOLT electric trim tabs to compliment the successful hydraulic range.  These easy to installelectric trim tabs will suit many applications for the 17' to 23' boat size.   Especially suited to Quintrex & other aluminium boats.

BOLT SYSTEM: Two Sizes:

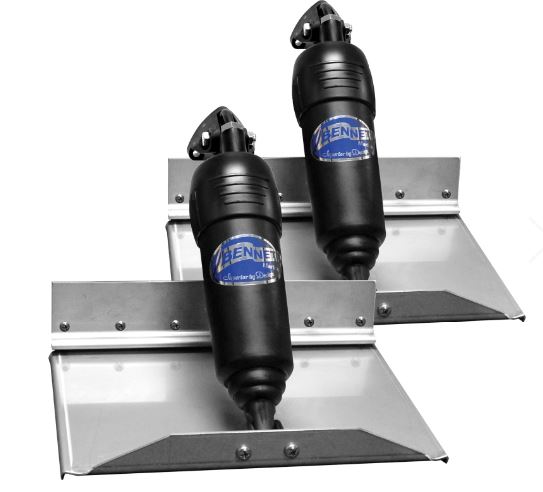

BOLT-Wide 12" x 9"   (Width Across Transom x Length Behind Boat)

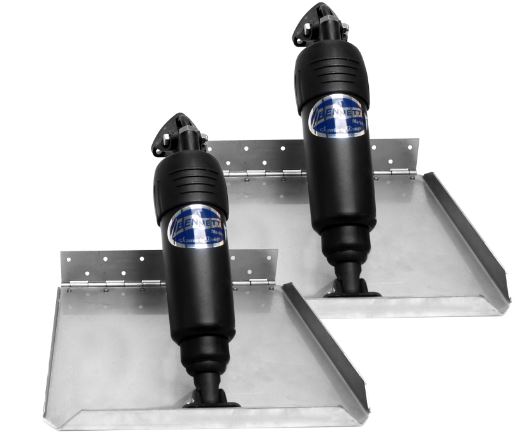

BOLT-Long 9" x 12"   (Width Across Transom x Length Behind Boat)  The Long tabs are a much stronger version due to the increased working load.  They have a more powerful actuator.

The above two BOLT sizes cover 90% of all boats.  Either size will work the same. Choose whichever suits your transom space.

Other sizes are available up to 18".  Please email us for quote.  Provide boat decription, loaded weight and HP.

Kit Inludes: Trim Tab Planes & Hinges, 2 x Electric Actuators, Wiring Loom, Switch (Brains Box).

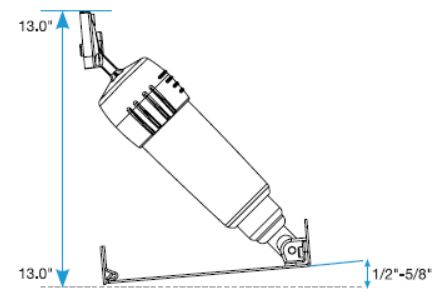

BOLT-Wide  Installation
where there is plenty of room on the transom >340mm

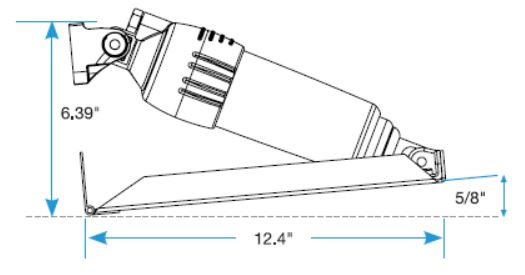

BOLT-Long Installation
for shorter transom height

of <200mm

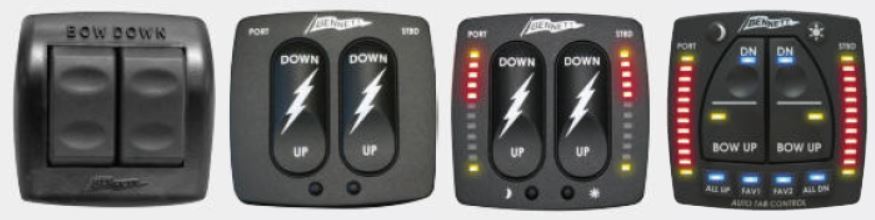

Four BOLT Keypad & Function options.:



BRC with Standard Rocker Switch

BCN with Keypad Switch & AutoRetract

BCI with Kepypad, LEDs Indicator & AutoRetract

ATP with AutoTab Control, AutoRetract, LED Position Indicator & One Press Up & Down

Designed with ease of installation in mind the BOLT switches offer flexibility to the electric trim tabs.

Easy to follow instructions make installation a breeze.  Youtube installation videos show you how to install the tabs.  5 year manufacturers warranty.

Freight:  Standard freight of $20 (or $30 for the fastest possible way)  applies to this product.  More freight details are available when you check out.  Manufacturer's warranty applies.

(BTTBolt)

SKU BTTBolt
