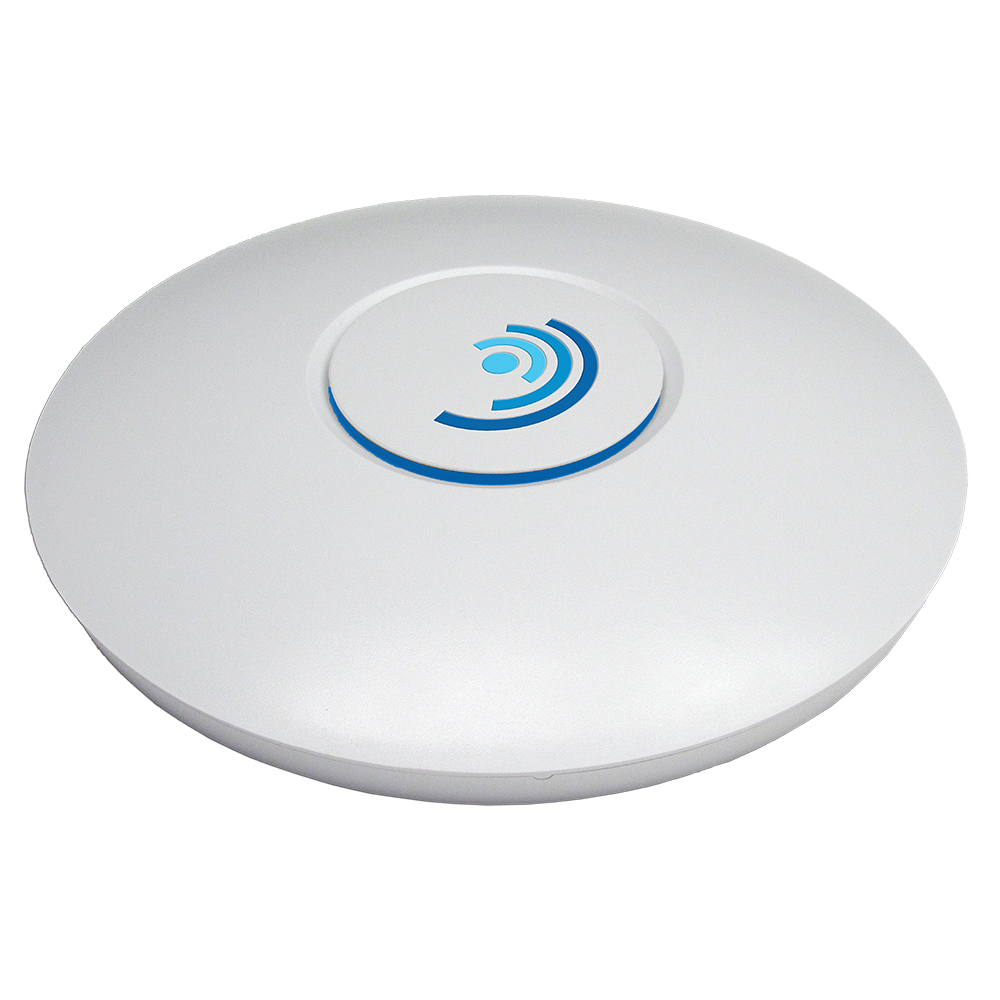

MAP7 Dual Band Marine Access Point

Aigean has developed specialized wireless access points called Marine Access Points(MAP) for providing high-performance local wireless networks onboard.  MAP's allow for redistribution of the vessel's Internet connection for tablets, phones, and computers to connect form anywhere on or int he vicinity of the vessell.  Install a single MAP on smaller vessels, and multiples on larger vessels (usually over 40' LOA).

Quickly and easily connect to your existing network to add or expand wireless coverage. When paired with an Aigean Networks Wi-Fi Client or Router, you can manage any connected access points directly through their interfaces.

Technical Specifications:

  • Processor Specs Atheros MIPS 74Kc, 550MHz
  • Memory Information 128MB SDRAM, 16MB Flash
  • Networking Interface 2 x 10/100/1000 BASE-TX (Cat 5, RJ-45) Gigabit Ethernet
  • Powerful 2.4 GHz and 5 GHz (802.11abgn)

Physical/Electrical/Environmental

  • RF Connector None - Internal Antennas
  • Enclosure Size 11.9" x 9.3" x 1.5" (300mm x 266mm x 36.7mm)
  • Weight 0.64 lbs, 0.95 lbs with Mounting Kits (0.29 kg, 0.43 kg)
  • Enclosure Characteristics Plastic saucer-style enclosure
  • Power Method Passive Power over Ethernet (48V), 802.3af Supported
  • Operating Temperature 14xF to 158xF (-10xC to 70xC)
  • Operating Humidity 5 to 80% Noncondensing
  • Shock and Vibration ETSI300-019-1.4
  • Environment Resistance IP60 (NEMA 1)
  • Mounting bracket
  • 110-220V AC PoE injector included
  • 2 Year Limited Warranty

American Sourced Marine Parts:

The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking. Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.

All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.

Any additional import fees are paid by the customer. We will assist with customs formalities if necessary.

Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA within one year of order if there is a warranty issue.

Dangerous Goods:

Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.

Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace and
may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.

Express Freight Charges: Total freight cost is based on the weigh of the package.

The default freight charge is $85 for the first kilo.

The shipping weight kg of the item is shown under the Specifications tab above.

We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.

Following your purchase we will calculate the freight charges based on the table below. The default shipping rate for 1kg for any order is $85.

If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:



0-1kg $85 (This is the default rate)

>1-2kg +$40

>2-3kg +$65

>3-4kg +$80

10kg +$185

15kg +$240

20kg +$295

Some bulky items may be classified as oversize regardless of their weight. Freight charges over 1 kilo will be based on the table above.



(64120)

SKU 64120
Shipping Weight 0.9800kg
