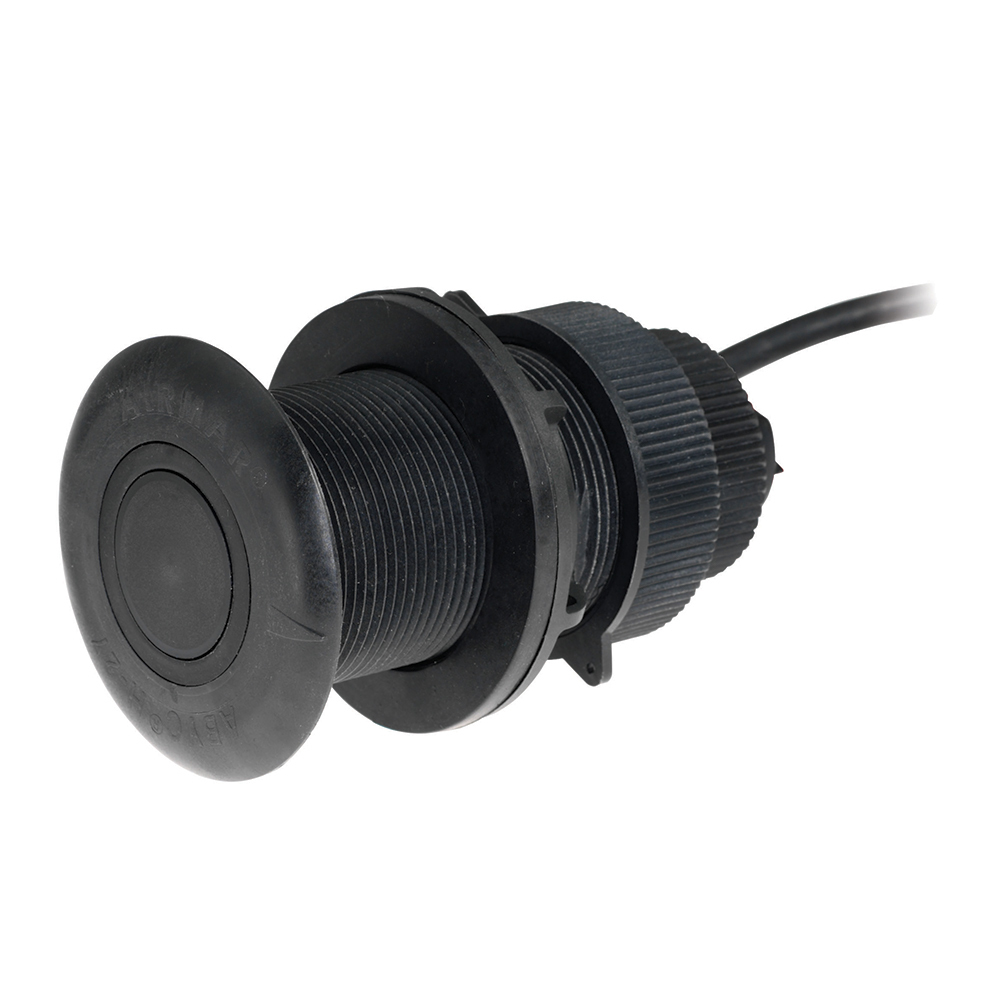

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M Cable

Airmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.

Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.

Smart™ Sensor Features

  • Broadband ceramic available with 0°, 12° and 20° tilt options
  • Enhanced depth performance
  • Maximum Depth Range: 180M (594’)
  • Minimum range 0.5M (1.6’)
  • Urethane face provides better sensitivity
  • Excellent high-speed performance
  • Fixed 12° tilt for 8° to 15° deadrise
  • NMEA 2000 output
  • 100 W RMS power
  • Frequency: 235 kHz
  • Cone: 12°
  • All models have depth and temperature
  • 235 kHz eliminates interference with fishfinders
  • Retractable insert provides ease of serviceability
  • Usable Shaft Length: 57mm (2.25”)
  • 6M(19.8”) NMEA 2000® devicenet cable and connector
  • 51mm (2”) housing
  • Blanking plug included
  • Accommodates maximum hull thicknesses 54 mm (2 1/8”)
  • Accommodates minimum hull thicknesses 6.3 mm (0.25”)


American Sourced Marine Parts:  Please read this.....


The product on this page ships worldwide from the United States by Fedex or DHL.  Prices are AUD$.

Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service.  Transit Insurance up to AUD$1000 value.  Customs clearance.
GST is already pre-paid. Tracking of your parcel.  Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000
Freight Charges:


The shipping weight kg of the item is shown
under the Specifications tab.


The Express shopping cart default rate is AUD$85 for the first kilo.    Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.


The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400   Estimate only.


Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(88888)

SKU 88888
Shipping Weight 0.6800kg
