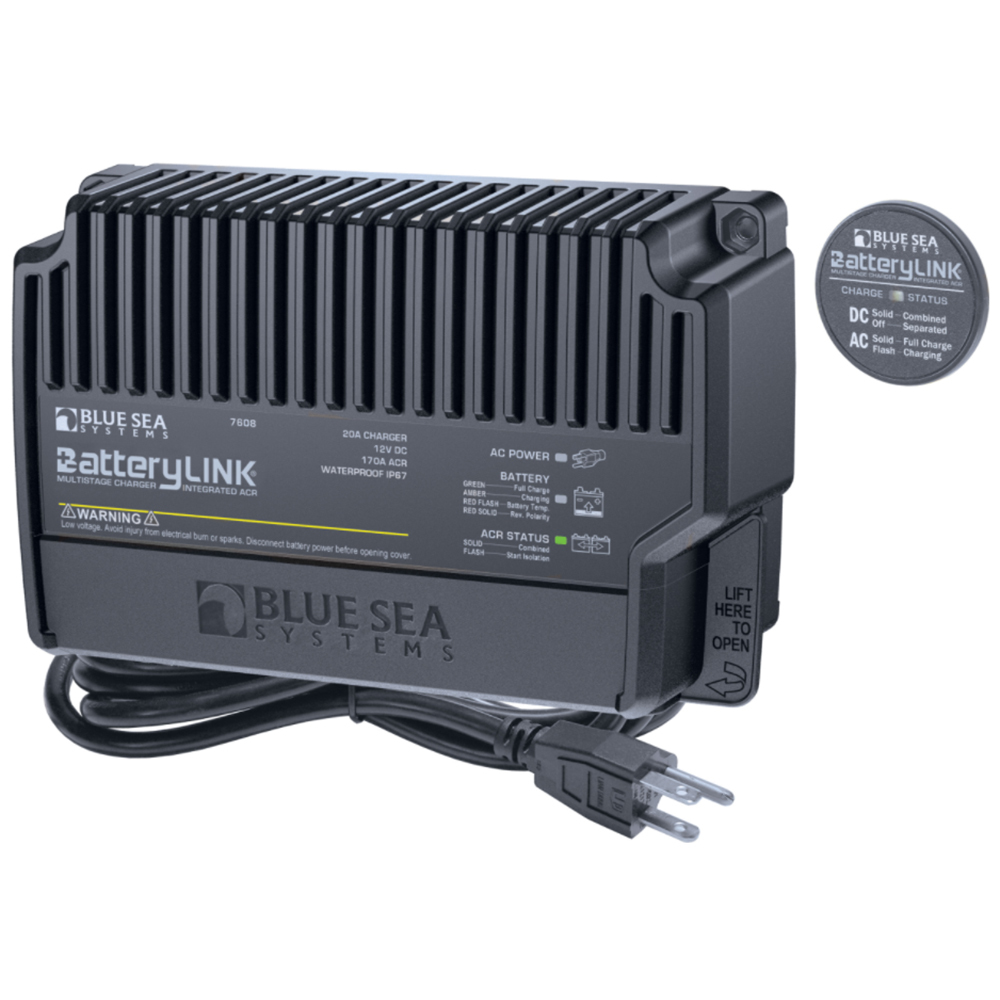

7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

Charge at or away from the Dock

  • Compact 12V 20A – 2 Bank AC Charger
  • 170A Continuous ACR
  • Remote Emergency Jump Start
  • Battery Temperature Compensation
  • Remote Display Included
  • IP67 Waterproof

Specifications:

  • Total Output Current: 20A
  • Nominal Voltage: 12V DC
  • Number of Outputs: 1 Negative/2 Positive
  • Terminal Stud Torque: 60 in-lb (6.78 Nm)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A
  • Universal AC Input Voltage: 90-265V AC
  • AC Input Frequency: 50/60Hz
  • Typical Float Voltage: 13.5V DC
  • Battery Types: AGM/Flooded/TPPL
  • Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
  • Maximum Battery CCA: 850CCA
  • Maximum Cable Size: 1/0 AWG (50mm)
  • Operating Current: 10mA/60mA
  • Plug Style: North American: NEMA 5-15P
  • Recommended Battery Bank Sizes: 60Ah Minimum
  • Terminal Stud Size: 1/4"-20
  • Warranty: 5 Year
  • Combine 30 sec: 13.5V
  • Combine 2 Min: 13.0V
  • Open 10 sec: 12.35V
  • Open 30 sec: 12.75V
