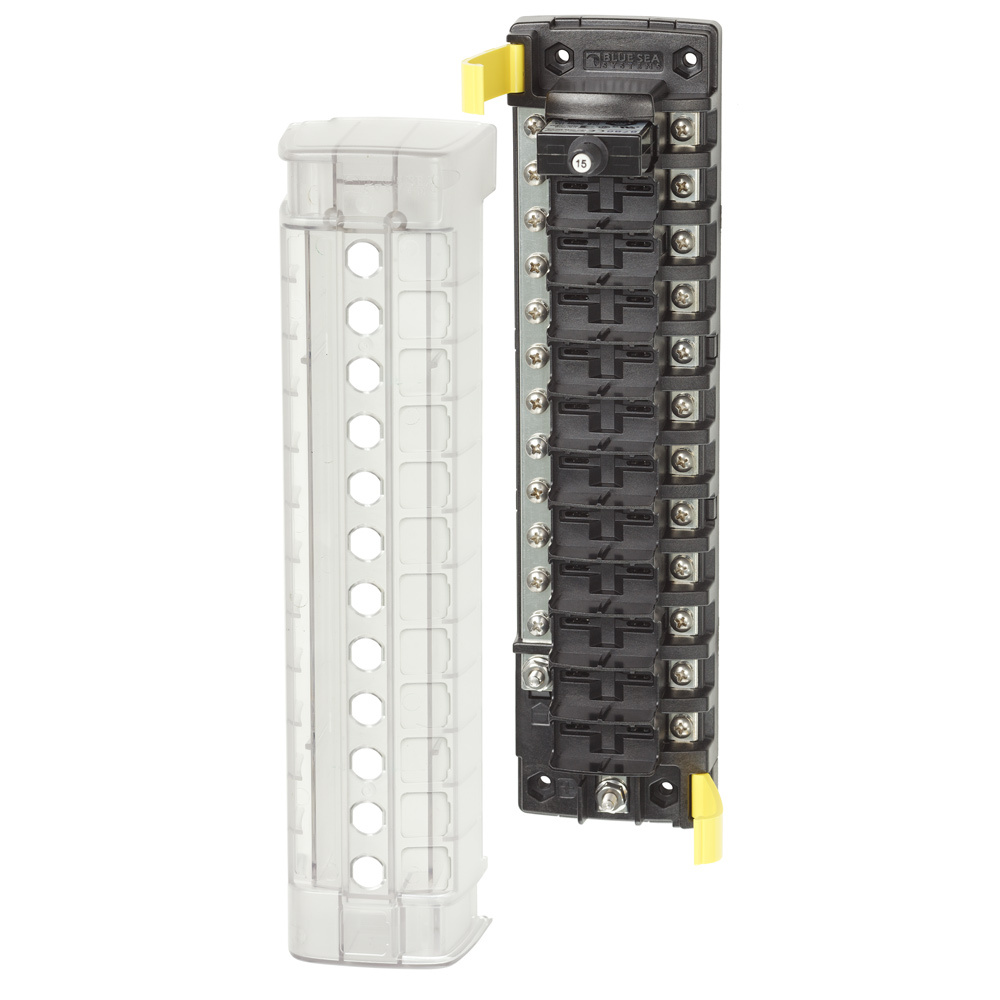

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

American Sourced Marine Parts:

The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking. Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.

All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.

Any additional import fees are paid by the customer. We will assist with customs formalities if necessary.

Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA within one year of order if there is a warranty issue.

Dangerous Goods:

Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.

Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace and
may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.

Express Freight Charges: Total freight cost is based on the weigh of the package.

The default freight charge is $85 for the first kilo.

The shipping weight kg of the item is shown under the Specifications tab above.

We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.

Following your purchase we will calculate the freight charges based on the table below. The default shipping rate for 1kg for any order is $85.

If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:



0-1kg $85 (This is the default rate)

>1-2kg +$40

>2-3kg +$65

>3-4kg +$80

10kg +$185

15kg +$240

20kg +$295

Some bulky items may be classified as oversize regardless of their weight. Freight charges over 1 kilo will be based on the table above.



(51812)

SKU 51812
Shipping Weight 0.8200kg
