Ideal for use in sailing boat anchor lockers with little available space. The VW Series of anchor winches are designed for traditional rope and chain combination anchor rodes where manual transfer of the rode from the rope warping drum to the chainwheel is required.

  • Provides the versatility of operating two anchors from one winch
  • Functional rope hauling from any direction using independent MAX-grip™ snag-free warping drum with clutch disengagement of chainwheel for positive control of all ropes
  • Permits use of traditional shackle and thimble rope and chain connection
  • Allows alternative mounting horizontally on a fore and aft bulkhead inside chain locker for below deck installation
  • High-quality fi nish on above deck components manufactured from marine grade stainless steel (AISI 316) and chromed bronze for long term durability
  • Cone type brake/clutch mechanism permits manual ‘Free Fall’ anchoring. Cone clutches unlike dog clutches provide smooth progressive engagement ensuring safe operator control
  • Chainwheel locking pawl (except on VW500 and VW10)
  • Simplifi ed through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel (AISI 316) bolts
  • Anodized aluminium gearbox and spacer on 500 1000 and 1500 models
  • Heavy duty dual direction motor designed for marine winches
  • Easily disassembled for servicing

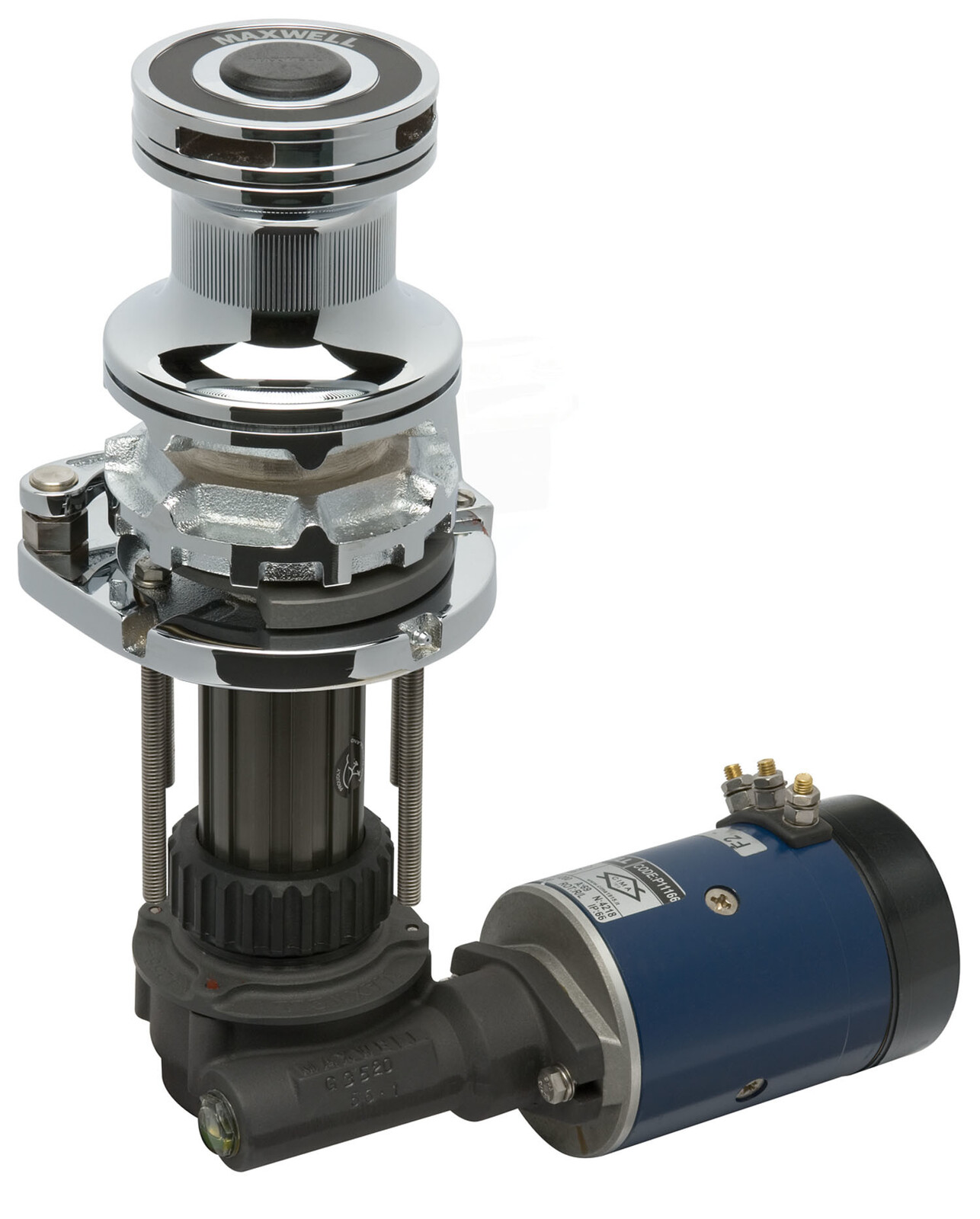

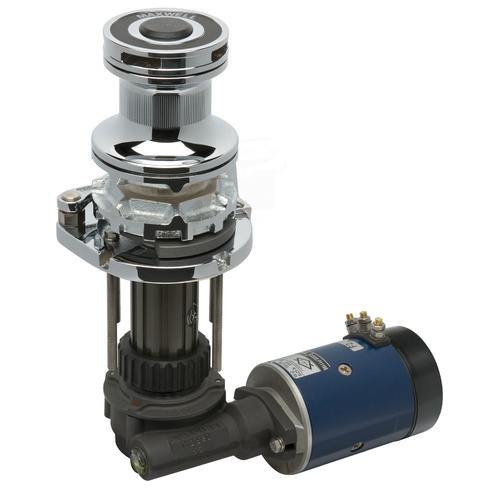

  • 500 VW, 12V, 600W, 50TDC Chainwheel + Capstan

    (P100457)

    SKU P100457
