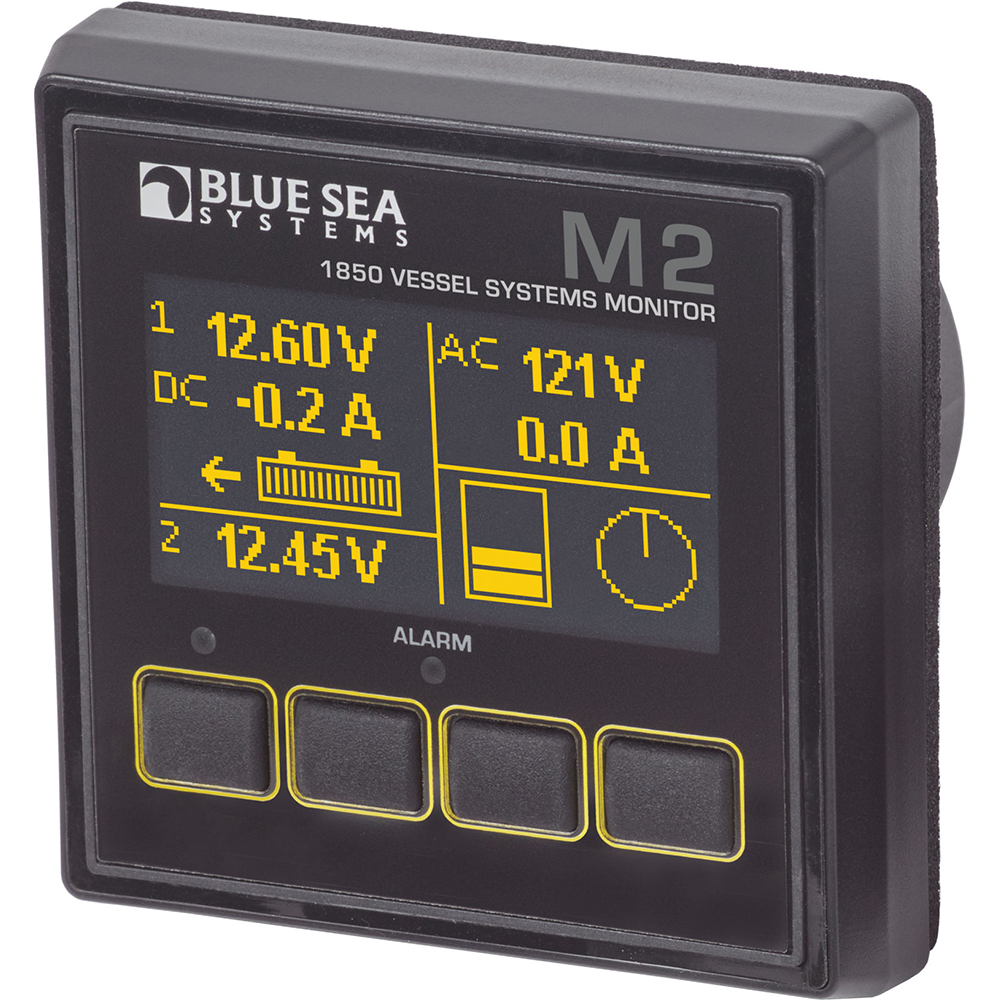

1850 M2 Vessel Systems Monitor

Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor.

DC System Monitoring (up to two batteries)

One input monitors the DC voltage, state-of-charge, current for one battery bank and another input monitors the voltage of an additional battery bank. Alarms include high and low voltage, high current, and low battery.

AC System Monitoring

The VSM monitors a single AC voltage, current, and frequency. Alarms include high and low voltage, high current, and high and low frequency.

Bilge & Tank Monitoring

The VSM has two inputs that can be configured as a bilge or tank monitor. When configured as a bilge input, monitoring functions include pump active, cycle count in the last 24-hours, average cycles in a typical 24-hour period, and total cycles. High alarms can be set for both the minutes of run time in the last hour as well as the number or cycle counts in the last 24-hours. When configured as a tank input, tank status can be represented in both capacity (gallons or liters) or as a percentage of capacity. Custom tank shapes can be auto-calibrated or programmed. Both high and low level alarms can be set for all tanks.

Specifications:

  • Meter: Bilge, Current, Tank, Voltage
  • Frequency: 40-90Hz
  • Current Range: 0-150A AC/-500 to 500A DC
  • Operating Voltage: 40-300V AC/7-70V DC
  • Minimum Current Draw: 18.8mA @ 12V, backlight off/35mA @ 12V, backlight off
  • Nominal Voltage: 120V AC, 230V AC, 12V DC, 24V DC, 48V DC

American Sourced Marine Parts:

The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking. Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.

All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.

Any additional import fees are paid by the customer. We will assist with customs formalities if necessary.

Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA within one year of order if there is a warranty issue.

Dangerous Goods:

Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.

Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace and
may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.

Express Freight Charges: Total freight cost is based on the weigh of the package.

The default freight charge is $85 for the first kilo.

The shipping weight kg of the item is shown under the Specifications tab above.

We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.

Following your purchase we will calculate the freight charges based on the table below. The default shipping rate for 1kg for any order is $85.

If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:



0-1kg $85 (This is the default rate)

>1-2kg +$40

>2-3kg +$65

>3-4kg +$80

10kg +$185

15kg +$240

20kg +$295

Some bulky items may be classified as oversize regardless of their weight. Freight charges over 1 kilo will be based on the table above.



(74851)

SKU 74851
Shipping Weight 0.7900kg
