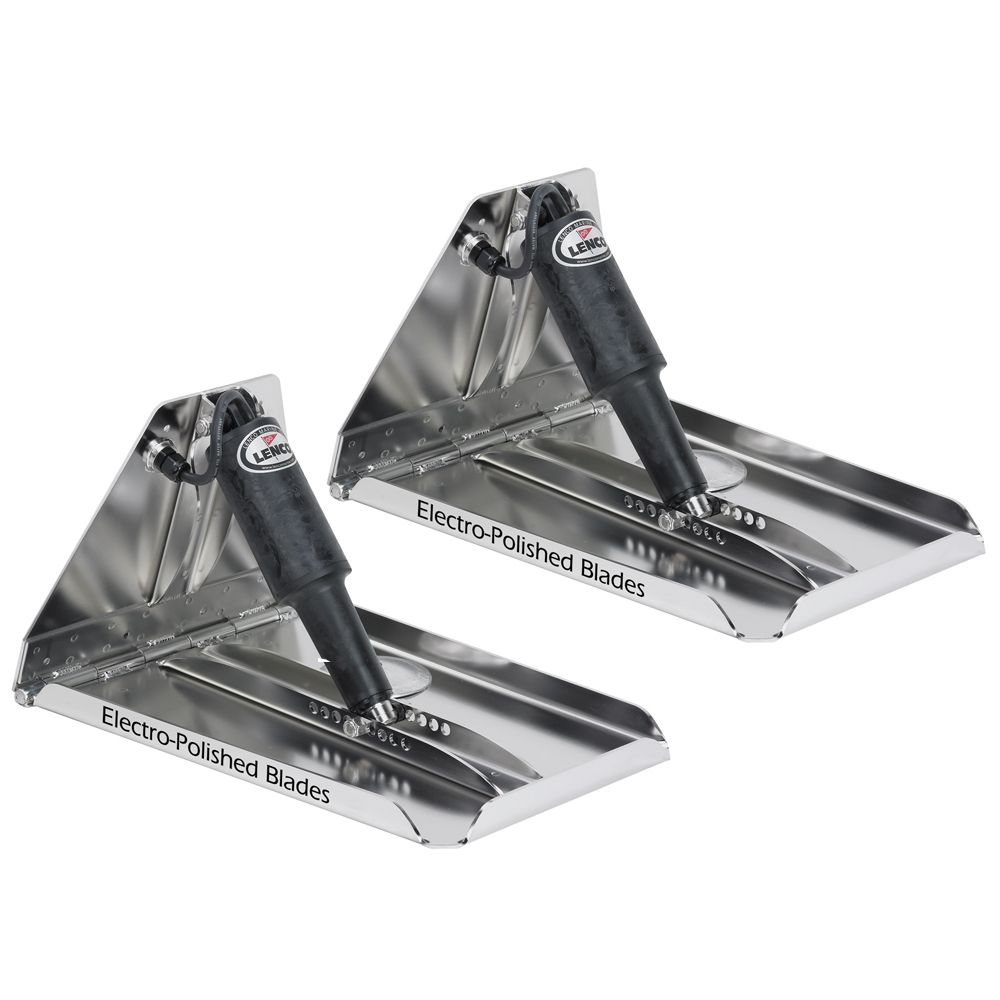

17" x 12" Extreme Duty Performance Trim Tab Kit w/o Switch Kit- 12V -Single Actuator Kit

Lenco Electric Extreme Duty Polished Blade Trim Tab Kits feature fast response actuators for precise control. They are fully submersible and feature Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge - 304 SS with 1" turned up edges, an 85 degree inside taper and 3/8"diameter hinge pin. Extreme Duty actuators with 3/8" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

Kit Contents:

  • 2 each of stainless steel trim tab planes
  • 2 each of #15056-001XD extreme duty actuators with 6" lead & Deutsch plugs
  • Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

The following to be supplied by customer:

  • Boat mounting hardware
  • Actuator extension harnesses (2 for single actuator application or 4 for dual)
    will be required. Order the lengths of your choice. See the Lenco
    Accessories section.

Specifications:

  • Suggested Boat Length: 20' to 40'
  • Length of Tab: 17"
  • Width of Tab: 12"
  • Minimum Transom Height: 10.5"
  • Blades: 10 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Switch Required: 10222-211D, 15069-001 or 15070-001
  • Actuators: 12-volt
