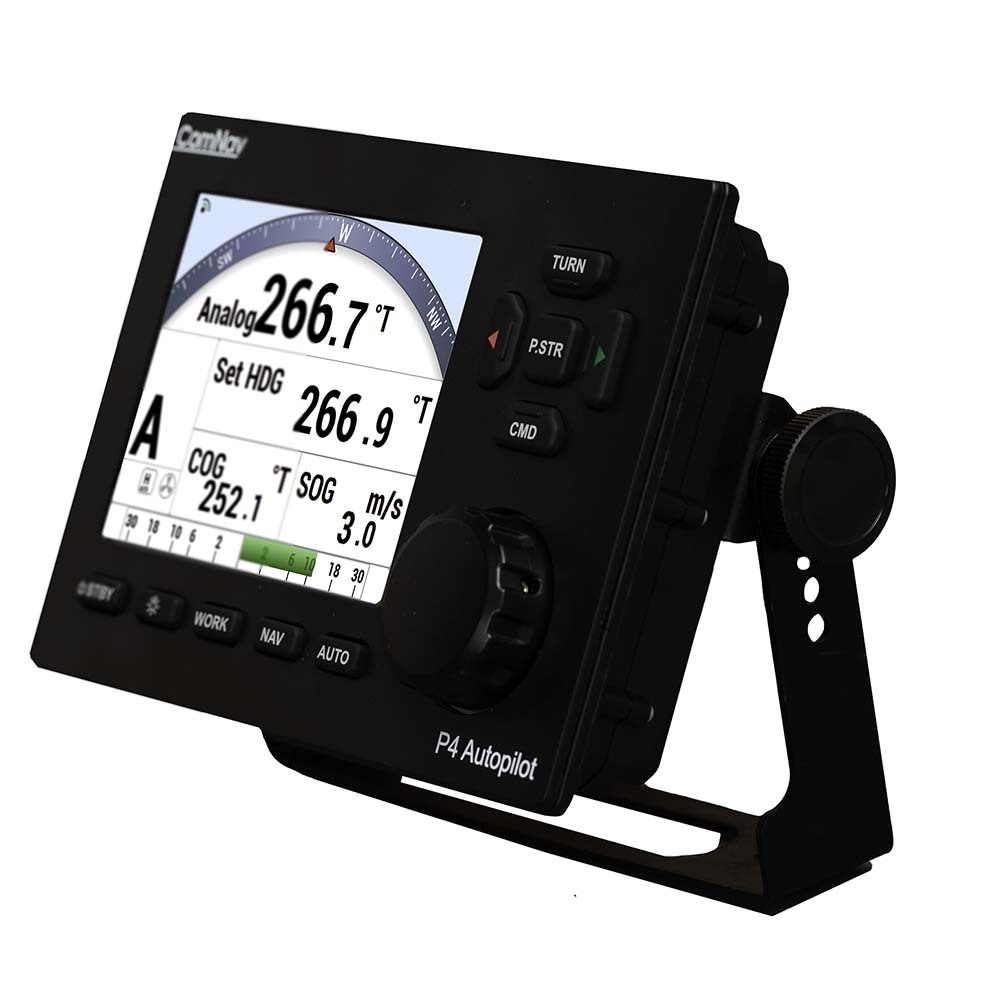

P4 Color Pack - Fluxgate Compass & Rotary Feedback for Commercial Boats *Deck Mount Bracket Optional

Features:

  • IST – Intelligent Steering Technology provides superior vessel steering capability
  • ADAPTIVE steering for sea conditions and varying vessel speeds
  • AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
  • WORK Mode suitable for Towboats and Workboats
  • NMEA 2000, ETHERNET, and NMEA 0183 interface
  • Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts
  • PRC- Proportional Rate Control feature provides gentle smooth response
  • Multi-Station capability with security station lock
  • SUNLIGHT viewable LED backlit 5.7” TFT LCD 640 x 480 display
  • NAV Mode provide adaptive precise track steering
  • ALC – Automatic Leeway Compensation for Drift, Tide & Wind
  • Fully compatible with onboard instruments and steering systems
  • Z-Drive interface allows 360 ͦAzimuth drive interface using +/- 10 Volts /4-20 milliamps analog signal (optional)
  • Auto Thrust-assist for Dead-ahead slow or station keeping (optional)
  • Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Icelandic, and more
  • Standard Mounting bracket – Flush Mount, Swivel mount bracket is optional
  • IP67 Waterproof – Control Head, TS4, NF4 and WS4
  • RoHS & CE compliance for EMI and RFI immunity

Additional Features:

  • 9 level backlit LCD display
  • Colour head gives you Red Night Vision mode for comfortable viewing in all conditions
  • Pre-defined parameter sets for full or semi-displacement,planning hulls, stern drives and sailboats
  • Multiple steering capability for Fast, Slow and Work modes
  • Simple to use course knob with mechanical detent
  • Multi-station capability with security station lock
  • Automatic trim
  • Adjustable yaw, turn rate and rudder settings
  • PORT and STBD dodge buttons for collision avoidance
  • Output for optional analog rudder angle indicator, up to 4 stations
  • Fully compatible with onboard NMEA instruments and most steering systems

Specifications:

  • Operating Voltage: 10 to 30 VDC
  • Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
  • Network: NMEA 2000
  • Navigational Interface: NMEA 0183 inputs
  • NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
  • Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor GNSS compass
  • Course Resolution: 1°
  • Course Detection: 0.5°
  • Control Head: Sunlight viewable high contrast LCD is 5.7” TFT LCD 640 x 480 VGA high resolution display


American Sourced Marine Parts:


The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.


All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.


Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


Dangerous Goods:


Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


Grey Marketing & Compliance:


Where a brand has an established distributor in
Australia, we will decline to sell it.
Most such brands and products have been removed
from our American listings.
Some items shown within this category are intended only
for the American marketplace and
may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




Express Freight Charges:  Total freight cost is based on the weigh of the package.


The default freight charge is $85 for the first kilo.


The shipping weight kg of the item is shown
under the Specifications tab above.


We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





0-1kg $85 (This is the default rate)


>1-2kg  +$40


>2-3kg  +$65


>3-4kg  +$80


10kg    +$185


15kg    +$240


20kg    +$295


Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




(72912)

SKU 72912
Shipping Weight 8.7300kg
