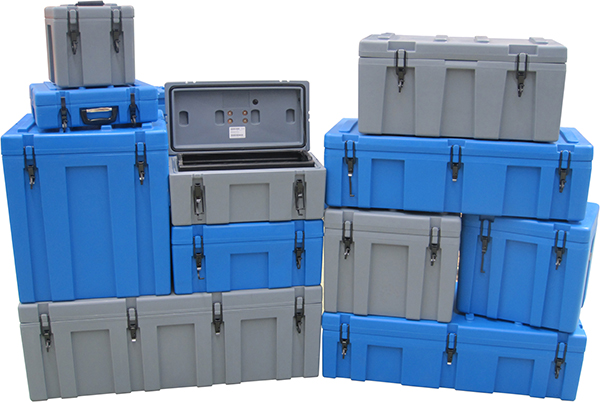

SpaceCase Heavy Duty Equipment Cases & Protection Boxes

SpaceCase- Tough & Rugged Equipment Boxes






Two Models & Wide Range:

Choose either General or Modular Style.  Standard colours are blue and grey.


Great Features:

These rugged Australian made equipment boxes are manufactured  to military standards.

  • Moulded from UV stabilised polyethylene plastic.

  • Will not dent or rust.

  • Hinges and locks are all recessed.

  • Hinges and locks are zinc electrocoated.

  • Weather resistant gasket seal system.

  • Resists dust, chemicals, oil.

  • Made to military standards

  • Large range of sizes



Easy Ordering By Part Number:

We sell by part number only.  Enter part number into the Search Box at the top of this web page.  Eg. 8131148 or 423318

Photos may differ from the actual part.




How To Order:

Enter the SpaceCase part number intot he Marine Direct Search Box Above.



Easy to Understand Freight Charges:

Default freight of  $20 charged is charged for each website order.   SpaceCases cases are bulky and can be heavy.  You will be advised the total freight charge once the delivery address has been assessed.

As a guide, a medium sized SpaceCase will cost about $30 - $50 for a Melbourne, Sydney or Adelaide Delivery.  A large SpaceCase sent to Perth maybe $60 - $80

We endeavour to get the best possible freight rates for you and this is a manual (human) process based on the destination and physical size of your total order.

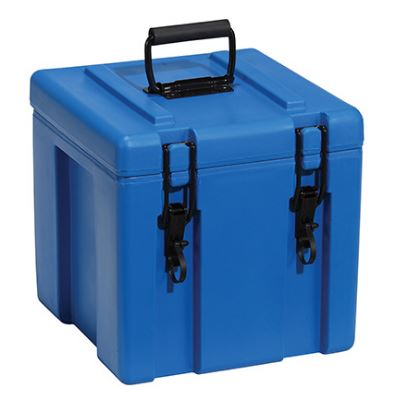

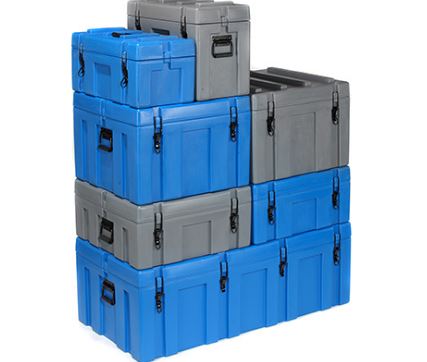

General SpaceCases:




Box General Range
These cases only interlock on cases with the same footprint (ie external length and width)
L20 – Refers to the external lid height = 200mm
L50 – Refers to the external lid height = 500mm

SpaceCase Model External Opening Internal Weight
  L x W x H (mms) L x W (mm) L x W x H (mm) (kgs)

SPACECASE 303020 BLUE 300 x 300 x 200 225 x 225 250 x 250 x 145          2.5
SPACECASE 303020 GREY 300 x 300 x 200 225 x 225 250 x 250 x 150          2.5
SPACECASE 303030 BLUE 300 x 300 x 300 225 x 225 250 x 250 x 250          3.3
SPACECASE 303030 GREY 300 x 300 x 300 225 x 225 250 x 250 x 245          3.3
SPACECASE 353434 BLUE 350 x 340 x 340 300 x 300 320 x 320 x 300          3.5
SPACECASE 353434 GREY 350 x 340 x 340 300 x 300 320 x 320 x 300          3.5
SPACECASE 423318 BLUE 420 x 330 x 180 350 x 245 340 x 255 x 150          3.1
SPACECASE 423318 GREY 420 x 330 x 180 350 x 245 340 x 255 x 150          3.1
SPACECASE 463815 BLUE 460 x 380 x 150 395 x 305 420 x 335 x105          3.3
SPACECASE 463815 GREY 460 x 380 x 150 395 x 305 420 x 335 x105          3.3
SPACECASE 504521 BLUE 500 x 450 x 210 420 x 375 450 x 400 x 165          5.0
SPACECASE 504521 GREY 500 x 450 x 210 420 x 375 450 x 400 x 165          5.0
SPACECASE 504531 BLUE 500 x 450 x 310 425 x 375 450 x 400 x 265          5.5
SPACECASE 504531 GREY 500 x 450 x 310 420 x 375 450 x 400 x 265          5.5
55 TRAY RAIL N/A N/A N/A          1.0
SPACECASE 573232 BLUE 570 x 320 x 320 490 x 225 510 x 280 x 280          4.0
SPACECASE 573232 GREY 570 x 320 x 320 490 x 225 510 x 280 x 280          4.0
573232 TRAY BLACK 505 x 240 x 65 N/A 490 x 230 x 60          1.0
SPACECASE 705537 BLUE 700 x 550 x 370 595 x 445 650 x 500 x 320          9.0
SPACECASE 705537 GREY 700 x 550 x 370 595 x 445 650 x 500 x 320          9.0
SPACECASE 783838 BLUE 780 x 380 x 380 700 x 290 720 x 330 x 310          6.0
SPACECASE 783838 GREY 780 x 380 x 380 700 x 290 720 x 330 x 310          6.0
SPACECASE 843118 BLUE 840 x 310 x 180 765 x 255 765 x 255 x 150          5.2
SPACECASE 843118 GREY 840 x 310 x 180 765 x 255 765 x 255 x 150          5.2
SPACECASE 844418 BLUE 840 x 440 x 180 765 x 375 765 x 375 x 150          6.8
SPACECASE 844418 GREY 840 x 440 x 180 765 x 375 765 x 375 x 150          6.8
SPACECASE 844467 BLUE 840 x 440 x 675 765 x 375 765 x 375 x 640        13.0
SPACECASE 844467 GREY 840 x 440 x 675 765 x 375 765 x 375 x 640        13.0
SPACECASE 844480 BLUE 840 x 440 x 800 765 x 375 765 x 375 x 770        13.5
SPACECASE 844480 GREY 840 x 440 x 800 765 x 375 765 x 375 x 770        13.5
SPACECASE 904040 BLUE 900 x 400 x 400 790 x 290 850 x 300 x 325        12.5
SPACECASE 904040 GREY 900 x 400 x 400 790 x 290 850 x 300 x 325        12.5
SPACECASE 905540 BLUE 900 x 550 x 400 755 x 405 850 x 490 x 325        12.5
SPACECASE 905540 GREY 900 x 550 x 400 755 x 405 850 x 490 x 325        12.5
SPACECASE 906255 BLUE 900 x 620 x 550 850 x 560 850 x 570 x 500        18.0
SPACECASE 906255 GREY 900 x 620 x 550 850 x 560 850 x 570 x 500        18.0
905540 TRAY BLACK 780 x 435 x 95 N/A 750 x 400 x 90          1.5
SPACECASE MODULAR 1109045  BLUE 1100 x 900 x 450 1000 x 800 1020 x 820 x 390        30.0
SPACECASE MODULAR 1109045 GREY 1100 x 900 x 450 1000 x 800 1020 x 820 x 390        30.0
SPACECASE MODULAR 11011050 L20  BLUE 1100 x 1100 x 500 940 x 940 1120 x 1020 x 450        45.0
SPACECASE MODULAR 11011050 L20  GREY 1101 x 1100 x 500 940 x 940 1120 x 1020 x 450        45.0
SPACECASE 11011080 L20 BLUE 1100 x 1100 x 800 940 x 940 1040 x 1040 x 645        18.0
SPACECASE 11011080 L20 GREY 1100 x 1100 x 800 940 x 940 1040 x 1040 x 645        18.0
SPACECASE 11011080 L50 BLUE 1100 x 1100 x 800 940 x 940 1040 x 1040 x 645        18.0
SPACECASE 11011080 L50 GREY 1100 x 1100 x 800 940 x 940 1040 x 1040 x 645        18.0
SPACECASE 110110110  BLUE 1100 x 1100 x 1100 940 x 940 1040 x 1040 x 940        18.0
SPACECASE 110110110 GREY 1100 x 1100 x 1100 940 x 940 1040 x 1040 x 940        18.0
SPACECASE 1205540 BLUE 1200 x 550 x 380 1080 x 430 1150 x 460 x 300        15.0
SPACECASE 1205540 GREY 1200 x 550 x 380 1080 x 430 1150 x 460 x 300        15.0
SPACECASE 12428040 BLUE 1240 x 280 x 400 1165 x 480 1230 x 225 x 330        13.0
SPACECASE 12428040 GREY 1240 x 280 x 400 1165 x 180 1230 x 225 x 330        13.0
SPACECASE 1403232 BLUE 1400 x 320 x 320 1310 x 230 1320 x 240 x 235        13.0
SPACECASE 1403232 GREY 1400 x 320 x 320 1310 x 230 1320 x 240 x 235        13.0
SPACECASE 140110110 BLUE 1400 x 1100 x 1100 1310 x 1010 1320 x 1020 x 1020        45.0
SPACECASE 140110110 GREY 1400 x 1100 x 1100 1310 x 1010 1320 x 1020 x 1020        45.0
SPACECASE 1807494 BLUE 1800 x 740 x 940 1635 x 585 1730 x 680 x 750        55.5
SPACECASE 1807494 GREY 1800 x 740 x 940 1635 x 585 1730 x 680 x 750        55.5
SPACECASE 1866245 BLUE 1860 x 620 x 450 1760 x 565 1760 x 540 x 370        48.0
SPACECASE 1866245 GREY 1861 x 620 x 450 1760 x 565 1760 x 540 x 370        48.0
SPACECASE 2153232 BLUE 2150 x 320 x 320 2065 x 235 2065 x 235 x 230        19.0
SPACECASE 2153232 GREY 2150 x 320 x 320 2065 x 235 2065 x 235 x 230        19.0


Modular 550/1100 Range
All cases in this range interlock and crosstack with other cases within this 550 series.
Designed to suit ISO standard pallets, racks and shipping containers.
**optional tray kits are available for all 550 series cases (except 1109045 case)
L08 – Refers to the external lid height = 80mm

SPACECASE MODULAR 555525 L08 BLUE 550 x 550 x 225 440 x 440 490 x 490 x 180          6.8
SPACECASE MODULAR 555525 L08 GREY 550 x 550 x 225 440 x 440 490 x 490 x 180          6.8
SPACECASE MODULAR 555531 L08 BLUE 550 x 550 x 310 470 x 440 490 x 490 x 260          7.8
SPACECASE MODULAR 555531 L08 GREY 550 x 550 x 310 470 x 440 490 x 490 x 260          7.8
SPACECASE MODULAR 555545 L08 BLUE 550 x 550 x 450 470 x 440 490 x 490 x 405          8.0
SPACECASE MODULAR 555545 L08 GREY 550 x 550 x 450 470 x 440 490 x 490 x 405          8.0
SPACECASE MODULAR 555555 BLUE 550 x 550 x 550 470 x 440 490 x 490 x 550          9.0
SPACECASE MODULAR 555555 GREY 550 x 550 x 550 470 x 440 490 x 490 x 550          9.0
SPACECASE MODULAR 555567 L08 BLUE 550 x 550 x 675 470 x 440 490 x 490 x 630        10.5
SPACECASE MODULAR 555567 L08 GREY 550 x 550 x 675 470 x 440 490 x 490 x 630        10.5
SPACECASE MODULAR 555580 L08 BLUE 550 x 550 x 800 470 x 440 490 x 490 x 740        14.0
SPACECASE MODULAR 555580 L08 GREY 550 x 550 x 800 470 x 440 490 x 490 x 740        14.0
SPACECASE MODULAR 555590 BLUE 550 x 550 x 900 470 x 440 490 x 490 x 840        16.0
SPACECASE MODULAR 555590 GREY 550 x 550 x 900 470 x 440 490 x 490 x 840        16.0
SPACECASE MODULAR 5555102 BLUE 550 x 550 x 1020 470 x 440 490 x 490 x 940        20.0
SPACECASE MODULAR 5555102 GREY 550 x 550 x 1020 470 x 440 490 x 490 x 940        20.0
555545 TRAY BLACK 395 x 395 x 85 N/A 385 x 385 x 80          1.0
SPACECASE MODULAR 1105525 L08 BLUE 1100 x 550 x 225 1020 x 440 1045 x 495 x 180        12.0
SPACECASE MODULAR 1105525 L08 GREY 1100 x 550 x 225 1020 x 440 1045 x 495 x 180        12.0
SPACECASE MODULAR 1105531 L08 BLUE 1100 x 550 x 310 1020 x 440 1045 x 495 x 260        14.5
SPACECASE MODULAR 1105531 L08 GREY 1100 x 550 x 310 1020 x 440 1045 x 495 x 260        14.5
SPACECASE MODULAR 1105545 L08 BLUE 1100 x 550 x 450 1020 x 440 1045 x 495 x 405        16.0
SPACECASE MODULAR 1105545 L08 GREY 1100 x 550 x 450 1020 x 440 1045 x 495 x 405        16.0
SPACECASE MODULAR 1105555 L30 BLUE 1100 x 550 x 550 1020 x 440 1045 x 495 x 505        18.0
SPACECASE MODULAR 1105555 L30 GREY 1100 x 550 x 550 1020 x 440 1045 x 495 x 505        18.0
SPACECASE MODULAR 1105567 L08 BLUE 1100 x 550 x 675 1020 x 440 1045 x 495 x 630        21.0
SPACECASE MODULAR 1105567 L08 GREY 1100 x 550 x 675 1020 x 440 1045 x 495 x 630        21.0
SPACECASE MODULAR 1105580 L08 BLUE 1100 x 550 x 800 1020 x 440 1045 x 495 x 730        25.0
SPACECASE MODULAR 1105580 L08 GREY 1100 x 550 x 800 1020 x 440 1045 x 495 x 730        25.0
11055102 SPACECASE L30 GREY 1100 x 550 x 1020 1020 x 440
1105545 TRAY BLCK 790 x 425 x 95 N/A 760 x 400 x 90          1.0
1105545 TRAY RAILS (ALUM)
SPACEACSE MODULAR 165055045 BLUE 1650 x 550 x 450 1560 x 440 1565 x 455 x 385        23.5
SPACECASE MODULAR 165055045 GREY 1650 x 550 x 450 1560 x 440 1565 x 455 x 385        23.5
SPACECASE MODULAR 165055067 BLUE 1650 x 550 x 675 1560 x 440 1610 x 480 x 570        30.0
SPACECASE MODULAR 165055067 GREY 1650 x 550 x 675 1560 x 440 1610 x 480 x 570        30.0
SPACECASE MODULAR 16511045 BLUE 1650 x 1100 x 450 1500 x 940 1565 x 1020 x 380        60.0
SPACECASE MODULAR 16511045 GREY 1650 x 1100 x 450 1500 x 940 1565 x 1020 x 380        60.0


Modular 620/1240 Range
All cases in this range interlock and crosstack with other cases within this 620 series.

SPACECASE MODULAR 623131 BLUE 620 x 310 x 310 540 x 235 570 x 260 x 250          5.8
SPACECASE MODULAR 623131 GREY 620 x 310 x 310 540 x 235 570 x 260 x 250          5.8
SPACECASE MODULAR 623145 BLUE 620 x 310 x 450 540 x 235 570 x 260 x 375          7.8
SPACECASE MODULAR 623145 GREY 620 x 310 x 450 540 x 235 570 x 260 x 375          7.8
SPACECASE MODULAR 626231 BLUE 620 x 620 x 310 545 x 545 570 x 570 x 230          9.0
SPACECASE MODULAR 626231 GREY 620 x 620 x 310 545 x 545 570 x 570 x 230          9.0
SPACECASE MODULAR 626245 BLUE 620 x 620 x 450 545 x 545 570 x 570 x 380        12.0
SPACECASE MODULAR 626245 GREY 620 x 620 x 450 545 x 545 570 x 570 x 380        12.0
SPACECASE MODULAR 626267 BLUE 620 x 620 x 675 540 x 540 570 x 570 x 615        15.0
SPACECASE MODULAR 626267 GREY 620 x 620 x 675 540 x 540 570 x 570 x 615         15.0
6231 TRAY BLACK 540 x 235 x 55 N/A 500 x 220 x 50          1.0
SPACECASE MODULAR 1246231 BLUE 1240 x 620 x 310 1155 x 540 1185 x 565 x 230        18.0
SPACECASE MODULAR 1246231 GREY 1240 x 620 x 310 1155 x 540 1185 x 565 x 230        18.0
SPACECASE MODULAR 1246245 BLUE 1240 x 620 x 450 1155 x 540 1185 x 565 x 370        28.0
SPACECASE MODULAR 1246245 GREY 1240 x 620 x 450 1155 x 540 1185 x 565 x 370        28.0
SPACECASE MODULAR 1246267 BLUE 1240 x 620 x 675 1155 x 540 1185 x 565 x 595        32.0
SPACECASE MODULAR 1246267 GREY 1240 x 620 x 675 1155 x 540 1185 x 565 x 595        32.0
1246255 SPACECASE L30 BLUE 1240 x 620 x 530 1155 x 540 1195 x 575 x 480        30.0
1246255 SPACECASE L30 GREY 1240 x 620 x 530 1155 x 540 1195 x 575 x 480        30.0
1246267 SPACECASE L30 BLUE 1240 x 620 x 670 1155 x 540 1185 x 570 x 620        32.0
1246267 SPACECASE L30 GREY 1240 x 620 x 670 1155 x 540 1185 x 570 x 620        32.0
1246290 SPACECASE L30 BLUE 1240 x 620 x 890 1155 x 540 1180 x 565 x 840        36.0
1246290 SPACECASE L30 GREY 1240 x 620 x 890 1155 x 540 1180 x 565 x 840        36.0


Modular 520/1040 Range
All cases in this range interlock with other cases within this 520 series.
Designed to suit G32/G66 shipping containers

SPACECASE 524525 BLUE 520 X 450 X 225 440 X 354 465 X 395 x 170          6.0
SPACECASE 524525 GREY 520 X 450 X 225 440 X 354 465 X 395 x 170          6.0
SPACECASE 524531 BLUE 520 X 450 X 310 440 X 354 465 X 395 x 245          6.2
SPACECASE 524531 GREY 520 X 450 X 310 440 X 354 465 X 395 x 245          6.2
SPACECASE 524545 BLUE 540 X 450 X 450 440 X 354 465 X 395 x 395          8.0
SPACECASE 524545 GREY 540 X 450 X 450 440 X 354 465 X 395 x 395          8.0
SPACECASE 1044525 BLUE 1040 X 450 X 225 960 X 354 990 X 395 x 990        12.0
SPACECASE 1044525 GREY 1040 X 450 X 225 960 X 354 990 X 395 x 990        12.0
SPACECASE 1044531 BLUE 1040 X 450 X 310 960 X 354 990 X 395 x 245        14.5
SPACECASE 1044531 GREY 1040 X 450 X 310 960 X 354 990 X 395 x 245        14.5
SPACECASE 1044545 BLUE 1040 X 450 X 450 955 x 350 955 x 355 x 395        13.0
SPACECASE 1044545 GREY 1040 X 450 X 450 955 x 350 955 x 355 x 395        13.0
SPACECASE 1049031 BLUE 1040 X 900 X 310 955 x 800 955 x 800 x 245        18.0
SPACECASE 1049031 GREY 1040 X 900 X 310 955 x 800 955 x 800 x 245        18.0
SPACECASE 1049045 BLUE 1042 X 900 X 450 950 x 800 950 x 800 x 385        18.0
SPACECASE 1049045 GREY 1042 X 900 X 450 950 x 800 950 x 800 x 385        18.0


Front Opening Range

SPACECASE MODULAR BINPACK-363 BLUE 550 x 360 x 440 495 x 370 455 x 310 x 410        10.5
SPACECASE MODULAR BINPACK-363 GREY 550 x 360 x 440 495 x 370 455 x 310 x 410        10.5
SPACECASE MODULAR BINPACK 550 BLUE 550 x 550 x 440 495 x 370 455 x 500 x 410        14.0
SPACECASE MODULAR BINPACK 550 GREY 550 x 550 x 440 495 x 370 455 x 500 x 410        14.0
SPACECASE BINPACK 550 NO SHELV BLUE 550 x 550 x 440 495 x 370 455 x 500 x 410        14.0
SPACECASE BINPACK 550 NO SHELV GREY 550 x 550 x 440 495 x 370 455 x 500 x 410        14.0


Insulated Box Range

SPACECASE ULTRATHERM 32lt (GREY) 620 x 410 x 340 515 x 305 515 x 305 x 230          8.2
SPACECASE ULTRATHERM 626245 80LT BL 620 x 620 x 450 500 x 500 500 x 500 x 230        13.0
SPACECASE ULTRATHERM 1246245 175LT BL 1240 x 620 x 450 1115 x 500 1115 x 500 x 320        28.0


Advance Case Solutions
Combines a Pelican Spacecase with a customised internal configuration to provide maximum protection
423318 FIRST AID LT GREEN 420 x 330 x 180 350 x 245 340 x 255 x 150          3.1

















148 Products Found
