Marine Air-Conditioning Systems

Split Systems Compact Systems Chillers New Baby 3K & 6K BTU Compacts! DC Variable Speed Aircons  From AUD$3600! Spare Parts Delivery to Australia, Pacific & Asia

Introduction:

Marine Direct is now distributing an advanced range of Marine Air-conditioners and chillers in Australia, into Asia and Pacific Islands.

- Compact AC Aircons from 3K to 48K BTU.

- Chiller Systems - Reverse Cycle from 24K to  130K BTU

- Split Aircon Systems from 7K to 36K BTU with Evaporators ranging between 7K and 36K.  System designed for multiple outlets.

- DC Powered Aircons with Variable Speed Motors. 12, 24 and 48 volt models.

- All aircons can  be inexpensively shipped to the Pacific Islands and Asia within 10 days.  If your aircon has broken down in the tropics...then this is the service for you.

The aircons are made to our specifications and distributed by Marine Direct Australia.  We sell direct to the public or though our qualified marine dealers.  Prices start from $3600 for complete systems.  See below.

Technology Used:

The factory has over 20 years experience manufacturing marine airconditioning systems.  Quality brand name compressors including Hitachi, Dakin and Mitsubishi are used in these aircon products. Environment friendly R410A refrigerant gas is used for the compact, split and chiller models.   Most parts are generic with easy to service parts make these aircons a great choice.  These facory aircons have the relevant safety certificates and markings.

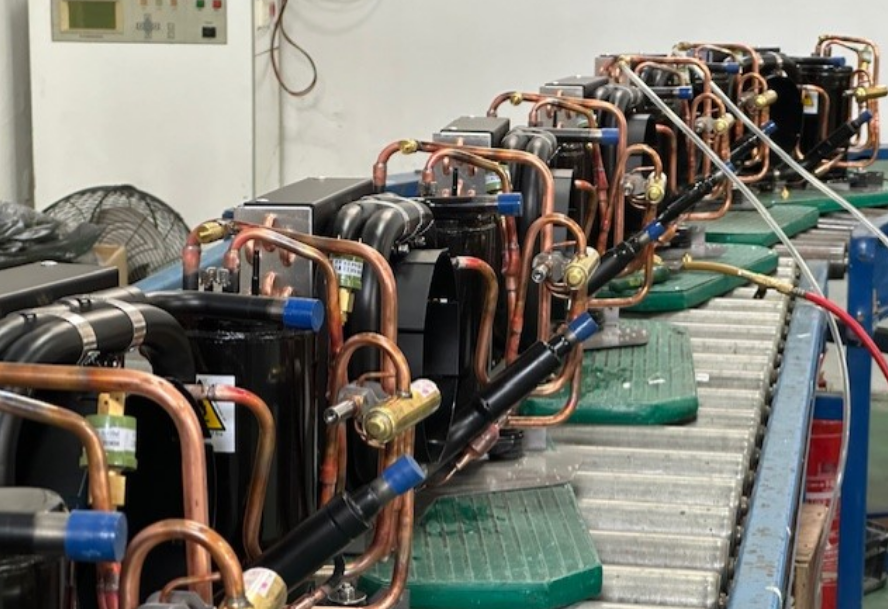

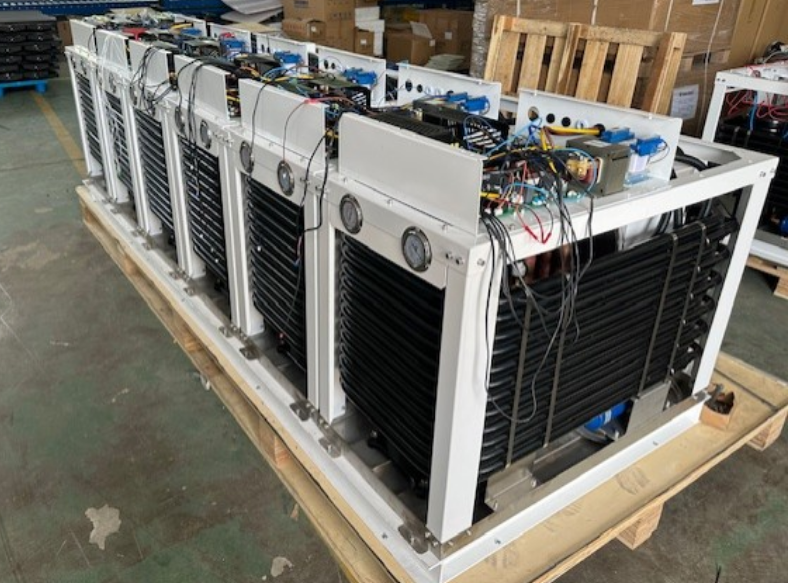

2024 Factory Visit Photos: We always visit our suppliers.  12K BTU Compact Testing Line 96K BTU Chiller Unit.

Scott with larger aircon components.

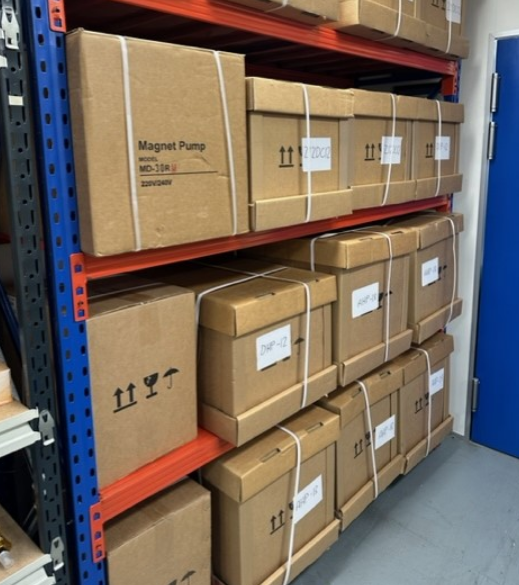

Australian Stock:

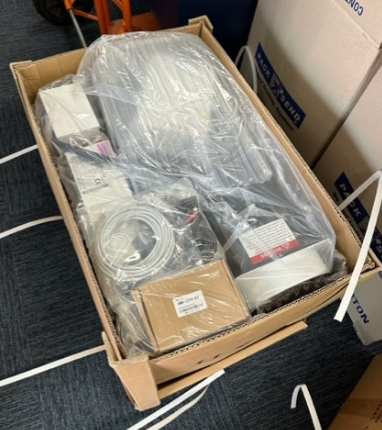

We have a wide range of marine aircons packaged and ready to  go

Aircon Delivery & Installation Langkawi, Malaysia April 2023	16K BTU Compact was installed in the Malaysian yacht.

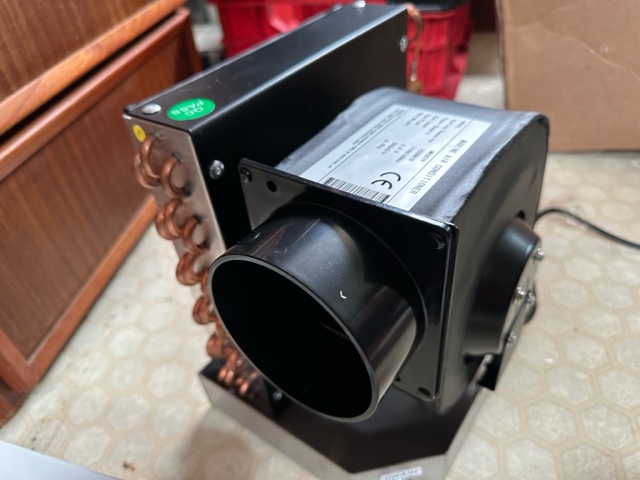

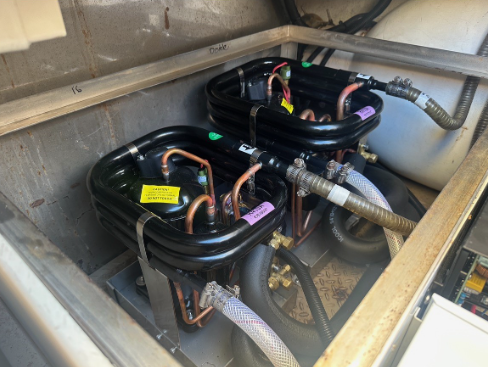

Sydney Refit of 3 Split Systems & Multiple Cabin Evaporators/Blowers.	Sydney Refit Cabin  Evaporator/Blower Installation June 2023

Understanding the Advantages of DC Aircon

The success of lithium battery setups with solar power and high capacity battery chargers reduces the reliance on traditional marine generators.  Many boats with no longer need a generator or have substantially reduced the number of hours they run.  Advantages of lithium batteries include less noise (the silent ship), reduced fuel bills and lower maintenance,  Portable Honda type generators can adequately charge batteries and run appliances.

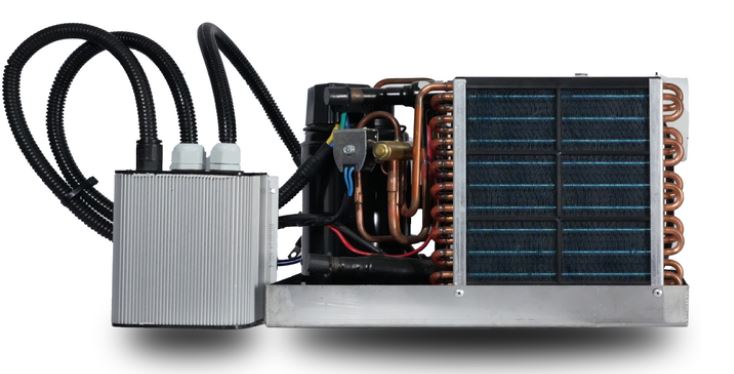

The advent of variable speed DC compressor motors adds a new dimension for air conditioning in boats.  A DC aircon will connect directly to lithium batteries and there is no need for an inverter or generator.     A 10 KWH lithium battery can power a ROTO 12,000 BTU  DC aircon for about 12 hours or more without any charging.

A traditional AC aircon compressor turns on and off depending on the thermostat setting.     A ROTO DC variable speed aircon continually adjusts its compressor speed based on the temperature setting.  It is a more efficient air conditioning system.

Other advantages of a DC aircon include no overloading of smaller generators and no tripping shore power circuit breakers on marina power posts.  DC aircons provide an off grid solution for marine aircon.

If you are making the change to lithium and need aircon, the ROTO range of DC air conditioners is worth a look.  12, 24 and 48v systems are available.

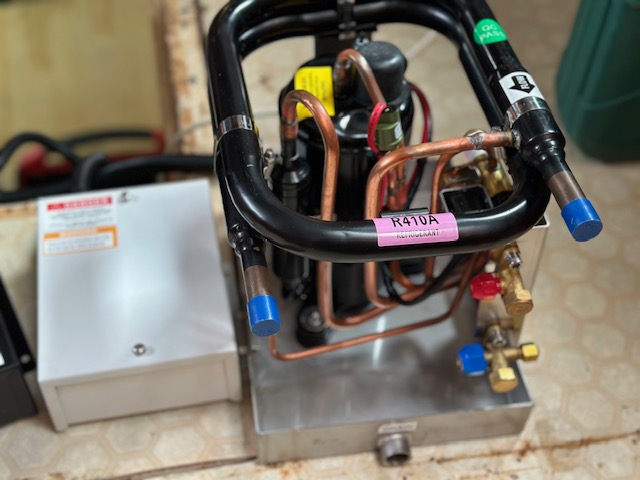

Case Study:  Replacement of 25 Year Old Cruisair 7BTU Split System

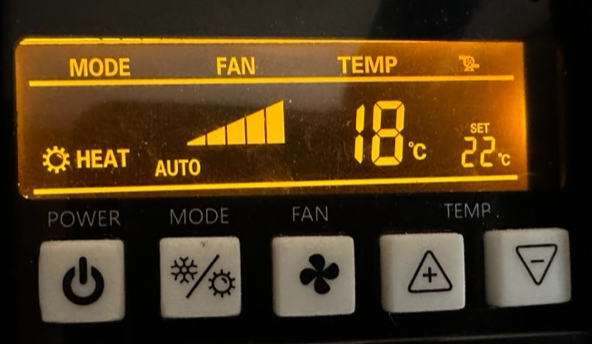

Customer's 7K split systems compressor had seized.  Spare parts and gas for this old R22 compressor are no longer available.  The decision was made to replace the unit with similar new reverse cycle  split aircon.  Steps included were to discharge old R22 gas for storage/disposal, remove old condensor and evaporator, modify copper piping to suit evaporator and condensor hosetails.  Made use of existing AC wiring and installed new wall control.  Total time taken to remove and replace old condensor and evaporator with new and gas system..... 3.5 hours to testing stage.  Of course wiring runs and installation of wall control into woodwork took longer and can were completed by the boat's owner. New simple to read control allows automatic fan speed and temperature setting.

Included in All Models:

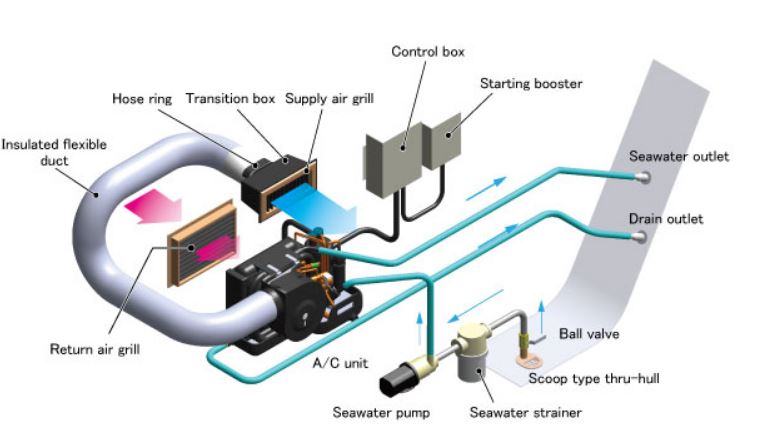

All Roto marine aircon systems include vibration free mounts, compressor, control box, wall control, evaporator, 4 way reversing valve, pump and condensation drains.

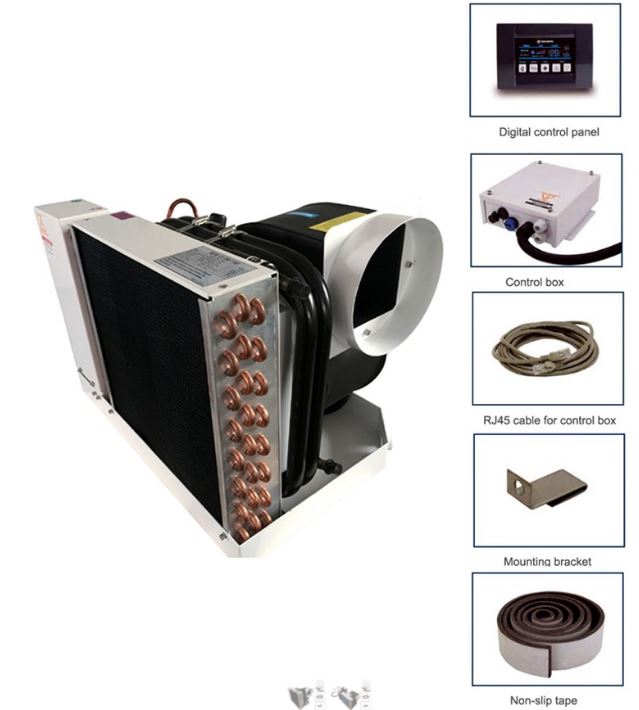

Included with Every Aircon: - Control Panel - Split System:      Condensor/Evaporator - Compact Unit - Wiring Loom - Control Box - AC or DC Pump

Features In All Models:

The Roto marine aircons all have reverse cycle operation, F or C degree displays, Hi/Low Pressure Protection, Overload Protection, Humidity Programme, Timer Programme, Sleep Mode and Delayed Start Setting.

Delivery to Asia & Pacific Islands

Has your marine aircon broken down?

Air Freight:  We can deliver your new ungassed aircon to major Asian & Pacific Island locations.   Simply arrange for the local contractor to gas the system with R410A refrigerant.  Delivery is as little as 10 days.

Products offered  include:

- AC Split Systems

- AC Compact Systems

- DC Compact Systems 12, 24 and 48 volts.

- Pumps

Spare Parts:

A range of spare parts are kept in Australia.  If anything goes wrong we can quickly send you replacement parts.

Special Orders:

240 volt, 120 volts and Three Phase are available.  (120 volt systems require international boat registration certificate if being delivered in Australia.).  Systems can be 50Hz, 60Hz or both 50Hz & 60Hz.

Hertz Hz:

All our Australian systems are 240 volt and both 50 and 60Hz.  Special orders can be either 50Hz  or 60Hz.

Pacific Islands / Asia Freight Costs:

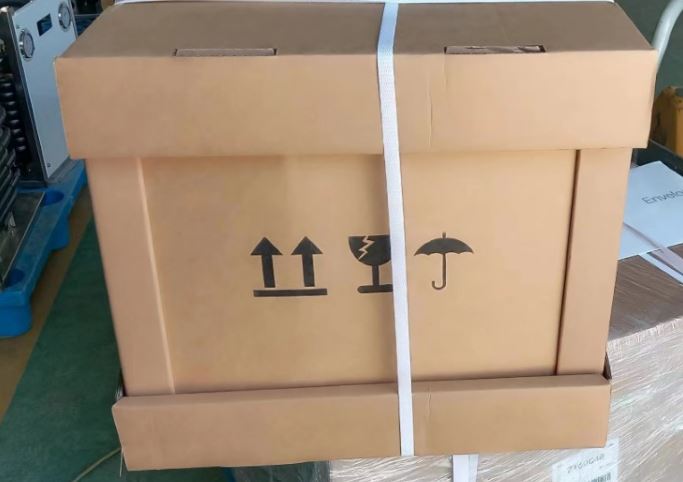

We can airfreight ungassed aircons by Fedex.  Contact us with the exact delivery address details for a quick Fedex air freight quote.

Greener Gas:

Our aircons use R410A refrigerant.

Warranty:

Recreational Boats: Two year warranty on all parts.  Condensor three years warranty.
Commercial Boats:  Two year warranty on all parts.  Condensor two years warranty.

Excludes any third party servicing costs, labour and any heavy freight charges.  Marine Direct Australia does not make service calls.   Any AC electrical work must be completed by a licenced electrician and receipts kept.   No warranty claim will be accepted if AC electrical work is carried out by an unlicensed person.

Popular Roto Sizes Available & Cost:  Prices AUD$ include GST.

Many in stock.   And New Stock in the way

Compact 3K BTU  $2990  Perfect for smaller cabins to cool air and reduce humidity levels.

Compact 6K BTU AUD$3790     Baby aircon with only 500 Watts ppower consumption!

Compact 12K BTU   AUD$3995

Compact 18K BTU  AUD$4700

Compact 24K BTU AUD$5300

12 volt 12K BTU AUD$5500

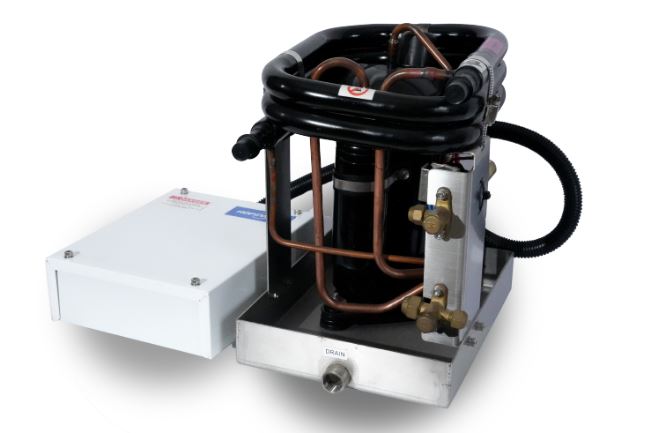

16K BTU Split System with single 16K evaporator/blower   AUD$6105

Order now for2024 / 2025  Summer Period.......

Full Range of Roto Marine Aircons- Mix and Match Split Systems with Evaporators.
Measurements in cms.

All systems come with a digital control.

Freight is always quoted seperately.  International freight from Australia can be arranged.  Systems must be discharged for air travel.

The Deal:

Ready for delivery in Asia, Pacific and Australia.

You can collect from our Sydney warehouse for a $150 warehouse service charge.

To Order:

Please use our Contact Us form for your initial enquiry.  We will start our written records from this enquiry.

You call also call us on 02 9909 8555   (If you have Caller ID we will call you back.)

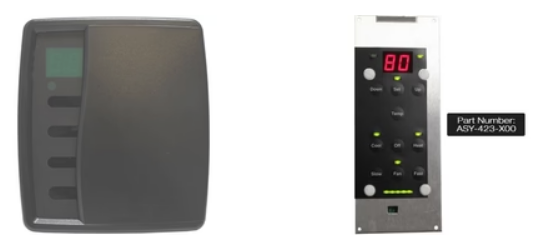

Cruisair & Marinair PCBs, Triggers & Smaller Pumps

Marine Direct supplies replacement PCBs, pumps, triggers and  controls for your Cruisair sysem.  We now offer the industry leading March magnetic drive impeller pumps.

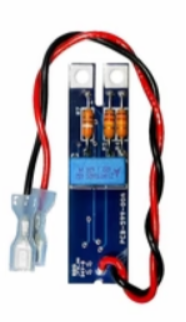

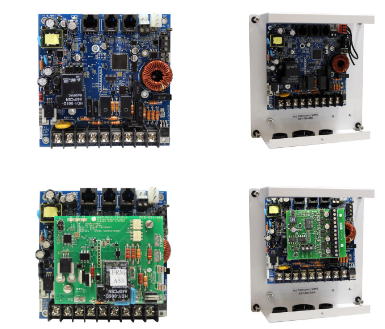

Cruisair Replacement PCBs

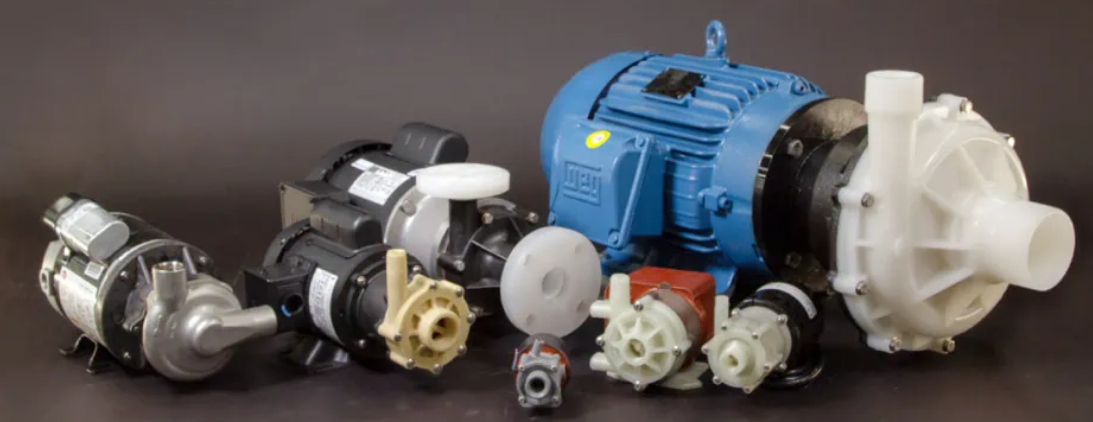

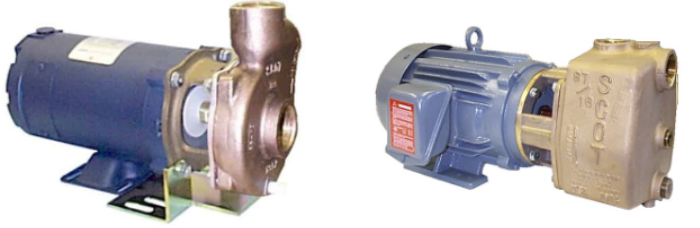

Scot Pump Products- USA made Pumps

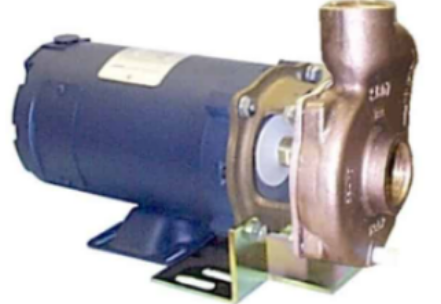

The Scot range of commercial quality marine pumps are available through Marine Direct Australia.  All pumps are custom made and generaqlly ar delivered to Australia within 2-3 weeks.

Webasto Marine Air Conditioning & Parts

Webasto

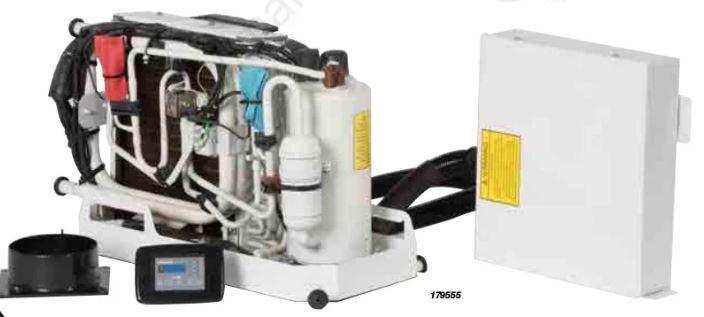

Webasto All in One marine airconditioners.    Spare parts too.

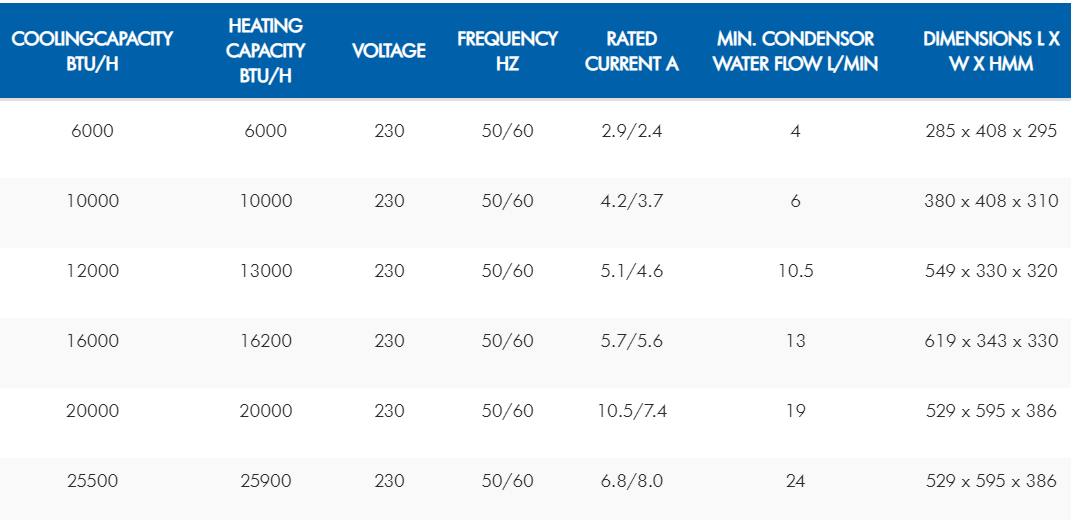

In general All In One units are available in the following sizes:

230 volts and 50/60hz.   Special order 120 volts. 60Hz

We have Australian stock of Webasto products today.

6,000 BTU

10,000 BTU

12,000 BTU

16,000 BTU

20,000 BTU

25,000 BTU

Webasto Ducting, Grilles and Airboxes.

Cruisair Parts
